VisionSuite VSA-100 AI Accelerator

The VSA-100 is a dedicated Q-SYS peripheral crafted to serve as an AI accelerator for VisionSuite applications. To utilize this device, a VisionSuite software license is necessary - see Licensing. When paired with VisionSuite software, the VSA-100 unlocks features including presenter tracking, AI-driven room awareness, and the capability to automatically capture the active speaker in the room, regardless of their seating position.

Note: The VSA-100 AI Accelerator requires Q-SYS Designer Software (QDS) for configuration and operation. Visit Q-SYS Compatibility for QDS version compatibility information.

  • Speaker Spotlight technology: The active speaker’s voice drives camera framing without the need for presets, while voice activity detection protects against false audio triggers.

  • Presenter Spotlight technology: Advanced computer vision drives full-body presenter tracking.

  • Computer vision models analyze full-body characteristics to create unique digital identifiers, enabling full room automations.

  • Integrates with Q-SYS using an Ethernet connection and without affecting the video signal chain.

  • Design, configure, calibrate, and commission all through VisionSuite Designer software, an easy-to-use, native tool within Q-SYS Designer.

  • Supported by Q-SYS NC Series network PTZ cameras

    • Presentation Space Tracking: NC-12x80 / NC-20x60

    • Conductor Camera: NC-12x80 / NC-20x60 / NC-110

    • Static View: Any Q-SYS Camera (Does not require a channel of analytics)

  • 1 RU form factor

Add the VSA-100 to your design Inventory from the Video category. The following components are related to the VSA-100:

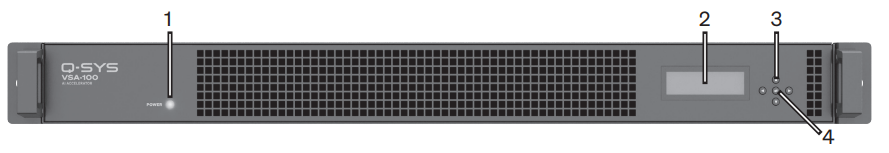

Front Panel

  1. Power light: lights up blue when the unit is powered on.
  2. Front-panel display: displays pertinent information about the core, such as its network configuration, the system it is running, active faults, etc.
  3. Navigation buttons (up, down, left, right): allows the user to navigate through the menus on the front-panel display:
    1. Both the up and right buttons advance to the next menu item.
    2. Both the down and left buttons go back to the previous menu item.
  4. ID/Select button: press the center button to put the Core into ID mode for identification within Q-SYS Designer Software. Press again to turn off ID mode.

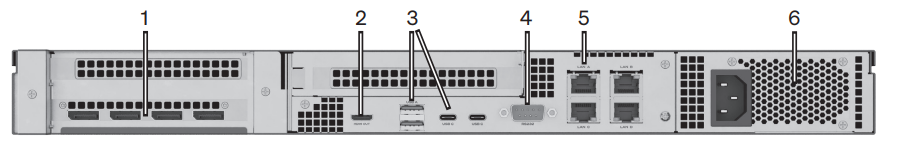

Rear Panel

  1. DisplayPorts: not supported.
  2. HDMI port: not supported.
  3. USB A and USB C ports: not supported.
  4. Serial communications RS232 (male DB-9):not supported.
  5. Q-SYS LAN ports (RJ45): from left to right; top row is LAN A and LAN B, bottom row is LAN C and LAN D. (Only LAN A is supported.)
  6. Power supply unit (PSU).

For complete product specs, refer to the Specifications Sheet on the VisionSuite product page at qsys.com.
