Core 5200

• 512 x 512 uncompressed, real-time Q-LAN or AES67 networked audio channels
• 160 AEC processors (assignable and routable)
• Deterministic and fixed analog audio input to output system latency of just 3.167ms
• Dual gigabit Ethernet ports for redundant networked audio
• Two independent, gigabit auxiliary ethernet ports for segregation of network services such as VoIP, SNMP, LLDP, LDAP and WAN media streaming
• Dual, hot-swappable AC Mains power supplies
• iDRAC (integrated Dell Remote Access Controller) for integration with IT asset monitoring systems from Dell
• Single software platform for system configuration, control and monitoring via Q-SYS Designer Software over IP with support for static, auto or DHCP IP addressing
• Supports up to 64 VoIP softphone instances to allow for large, multi-room deployments
• Fully compatible with all existing and future Q-SYS peripheral devices including I/O-Frame, I/O-8 FLEX, PTZ-IP conference cameras, I/O-USB Bridge, native touch screen controllers, paging stations and network amplifiers
• CE marked, UL Listed and RoHS compliant
• Covered by QSC Systems 3-year warranty, backed by Dell

The following Q-SYS Designer components are available for the Core 5200:

• Status
• Loudspeaker Monitor
• Serial Port

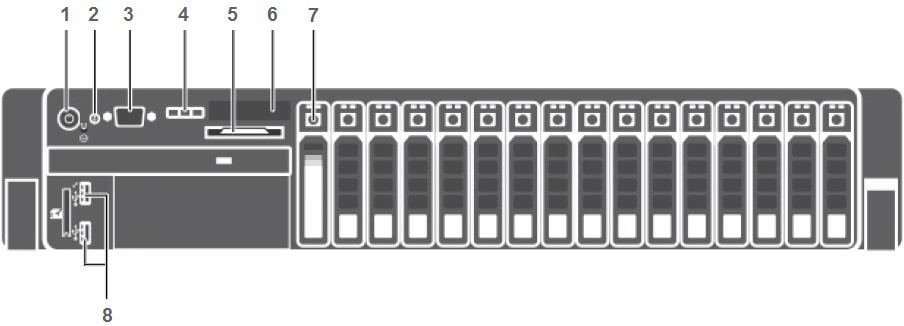

Front Panel

1. Power Button
2. ID Indicator (enabled via Q-SYS Designer)
3. VGA Video Output (female HD-15)
4. LCD Navigation Buttons
5. Slide-Out Information Tag: Provides Q-SYS contact information for support and the QSC product serial number.
6. LCD (displays Q-SYS Core name, status or health alerts)
7. Q-SYS High Capacity 960GB Media Drive

   Note: The Q-SYS Core 5200 comes standard with an MTP-16, 16-track player. 32, 64 and 128-track upgrades are available.

8. USB 3.0 Host Ports

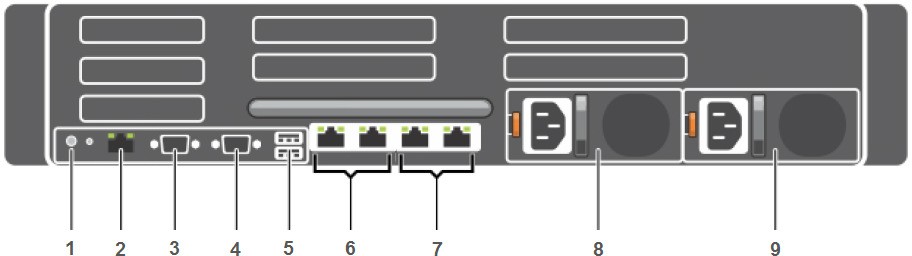

Rear Panel

1. ID Indicator (enabled via Q-SYS Designer)
2. iDRAC8 Enterprise Port (RJ45)

   Note: The iDRAC8 port is configured with a static IP address by default (192.168.0.120)

3. Serial Communications/RS232 (male DE-9)
4. VGA Video Output (female HD-15)
5. USB 2.0 Host Ports
6. Q-SYS LAN A and LAN B Multimedia Ports (RJ45 x2)
7. Q-SYS AUX Ports (RJ45 x 2)
8. Power Supply Unit 1 (universal input, 750W)
9. Power Supply Unit 2 (universal input, 750W)

The Core 5200 comes with Integrated Dell Remote Access (iDRAC). Refer the Dell Server documentation.

Configuring iDRAC

1. Connect the dedicated management Ethernet port to the Ethernet switch
2. During boot hit F10 to enter Life Cycle Controller setup
3. Under "Things to do" select "Configure server for remote access (iDRAC)"
4. Select Network
5. Under "IPv4 settings" enable IPv4, DHCP and "Use DHCP to obtain DNS server address"
6. Select Back, Finish and Exit

Using iDRAC

1. Launch an Internet browser and enter idrac-<service tag> as the URL
2. (Replace <service tag> with the actual service tag that can be located on the Core 5200 chassis)
3. The default login user name is root
4. The default login password is calvin

Tip: The Dell EMC OpenManage Mobile smartphone app can be used to access iDRAC.

Hardware
Platform	Dell PowerEdge R740 (14th generation)
Chassis	2.5" hard drive
Power	2x Hot-Plug universal input 750W PSU modules
LCD	Single line scrolling display
LAN	4x 1000 Mbps ports (2x Q-SYS multimedia, 2x Q-SYS aux)
iDRAC8	1x dedicated 1000 Mbps iDRAC v8, Enterprise license
Video	2x HD-15 VGA ports (1x front panel, 1x rear panel)
USB	2x USB 2.0 host (front panel), 2x USB 3.0 host (rear panel)
Serial	1x DE-9 RS-232 port (rear panel), 16550-compliant
SATA SSD	960 GB Q-SYS media drive
Additional Info	For additional hardware specifications visit: www.Dell.com/Dell/servers
Controls and Indicators
Front panel	Power button ID button and indicator (blinks when enabled from Q-SYS Designer Software) LCD navigation buttons
Rear panel	ID button and indicator (blinks when enabled from Q-SYS Designer Software)
Q-SYS Capacities
Network Channels	512x512
AEC Processors	160
VoIP instances	64
Multi-track Player	16 included (upgradeable to 32, 64 or 128 tracks)
Packaging and Accessories
Shipping carton dimensions	940mm (37 in.) x 610mm (24 in.) x 280mm (11 in.)
Shipping weight	64 lb (29 kg)
Accessories	ReadyRails Sliding Rails kit for square hole racks, EIA-310-E compliant Dell standard OEM bezel Regulatory statements pamphlet 2x AC mains power cords Q-SYS Quick Start guide
Environmental and Agency	Visit the Dell website for information on environmental specifications and international safety and regulatory compliance (www.Dell.com/Dell/servers).
