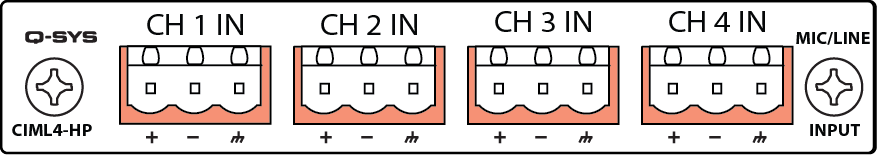

The CIML4-HP card provides four channels of switchable microphone and/or line-level analog audio input with 48 V phantom power. Features broadcast-quality pre-amplification and A/D conversion. This card provides inputs for microphones, mixers and CD/DVD players.
For configuration information, see Mic/Line In.
About Type 2 Hardware
The CIML4-HP card is Type 2 hardware.
Type 2 hardware provides new cables and connectors between the I/O cards and main boards in Cores and I/O Frames. Due to this change, the Type 2 hardware is not physically compatible with the older hardware. You can still integrate the new I/O Frames and Cores in the same system with older hardware, but the I/O cards are not interchangeable. Type 2 hardware can be identified by a yellow label on the back of the Core and I/O Frame, and the bottom of the I/O cards.
Specifications
|
CIML4-HP Card |
||
|---|---|---|
Dynamic range |
un-weighted |
> 112 dB |
|
A-weighted |
> 115 dB |
|
|
|
||
Distortion (20Hz - 20 kHz) |
+4 dBu (max) |
< 0.004% THD+N |
|
2 dB below clip (max) |
< 0.06% THD+N |
|
|
|
||
Crosstalk (20 Hz - 20 kHz) |
Inter-channel (max) |
> 110 dB |
|
Inter-channel (typ) |
> 110 dB |
|
|
Intra-channel (max) |
> 110 dB |
|
|
Intra-channel (typ) |
> 110 dB |
|
|
|
||
Frequency Response |
20Hz - 20 kHz (max) |
± 0.5 dB |
|
20Hz - 20kHz (typ) |
± 0.2 dB |
|
|
|
||
Input Impedance |
Balanced (nominal) |
10 k ohms |
|
Unbalanced (nominal) |
10 k ohms |
|
|
|
||
Common Mode Rejection |
20Hz - 20kHz (Min) |
> 45 dB |
|
20Hz - 20kHz (Typ) |
> 50 dB |
|
|
|
||
Input Sensitivities(continuously variable) |
Vrms |
1.23 to 17.35 |
|
dBu |
-56 to 27 |
|
|
dBv |
-58.2 to 24.8 |
|
|
|
||
Mute |
Digital Mute |
Infinite Attenuation |
|
|
||
Audio Converters |
Analog to Digital Conversion (ADCs) |
24-bit delta-sigma at 48 or 96 kHz sample rate |
|
Digital to Analog Conversion (DACs) |
— |
|
|
Group Delay |
0.25 ms |
|
|
|
||
Connectors |
— |
Four 3-terminal Euro-style detachable terminal blocks |
|
|
||
User-configurable Options(software enabled) |
Phantom Power |
+48 V phantom power (meets IEC 1938 [1996] spec) |
|
Input Sensitivity |
1.23 mV to 17.35 Vrms, -56 to +27 dBu |
|
|
Output Trim Vrms (max) dBu (max) dBv (max) |
— — — |
|
|
Amplifier Standby |
— |
|
|
Mute |
— |
|
|
Enable Meters |
— |
|
|
Audio Output Levels |
— |
|
|
|
||
Amplifier Model Support |
— |
— |
