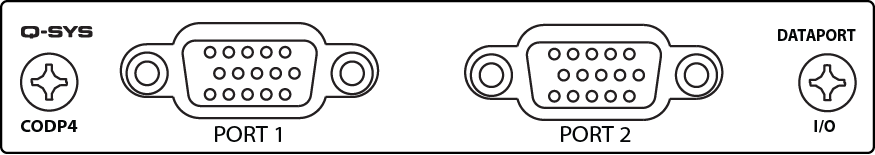

The CODP4 card provides four audio output channels (2 DataPort connectors) for connection to DataPort equipped QSC amplifiers. The DataPort interface allows audio, status monitoring, and control between Q-SYS and QSC DataPort power amplifiers.
For configuration information, see DataPort Out.
The CODP4 card is Type 2 hardware.
Type 2 hardware provides new cables and connectors between the I/O cards and main boards in Cores and I/O Frames. Due to this change, the Type 2 hardware is not physically compatible with the older hardware. You can still integrate the new I/O Frames and Cores in the same system with older hardware, but the I/O cards are not interchangeable. Type 2 hardware can be identified by a yellow label on the back of the Core and I/O Frame, and the bottom of the I/O cards.
Note: DataPorts on multi-port amplifiers must be wired to DataPorts on the same I/O Frame or Core. You cannot wire some of the amplifier's DataPorts to a Core and others, on the same amplifier, to an I/O Frame. You cannot wire some of the amplifier's DataPorts to one I/O Frame and others, on the same amplifier, to another I/O Frame.
CODP4 Card |
||
---|---|---|
Dynamic range |
un-weighted |
> 114 dB |
A-weighted |
> 117 dB |
|
|
||
Distortion
|
+4 dBu (max) |
— |
2 dB below clip (max) |
< 0.04% THD+N |
|
|
||
Crosstalk
|
Inter-channel (max) |
> 95 dB |
Inter-channel (typ) |
> 100 dB |
|
Intra-channel (max) |
> 100 dB |
|
Intra-channel (typ) |
> 110 dB |
|
|
||
Frequency Response |
20Hz - 20 kHz (max) |
± 0.5 dB |
20Hz - 20kHz (typ) |
± 0.2 dB |
|
|
||
Input Impedance |
Balanced (nominal) |
— |
Unbalanced (nominal) |
— |
|
|
||
Common Mode Rejection |
20Hz - 20kHz (Min) |
— |
20Hz - 20kHz (Typ) |
— |
|
|
||
Input Sensitivities |
Vrms |
— |
dBu |
— |
|
dBv |
— |
|
|
||
Mute |
Electro-mechanical relays |
Infinite Attenuation |
|
||
Audio ConvertersGroup Delay (at 48 kHz) |
Analog to Digital Conversion (ADCs) |
— |
Digital to Analog Conversion (DACs) |
24-bit delta-sigma at 48 or 96 kHz sample rate |
|
Output |
0.25 ms |
|
|
||
Connectors |
|
Two DE-15 (female 15-pin high-density D shell) connectors |
|
||
User-configurable Options(software enabled) |
Phantom Power |
— |
Input Sensitivity |
— |
|
Output Trim Vrms (max) dBu (max) dBv (max) |
— — — |
|
Amplifier Standby |
Set or clear amplifier in standby mode |
|
Mute |
Set or clear individual channel mutes |
|
Enable Meters |
Enable data collection of meters for each channel |
|
Audio Output Levels |
Adjust individual audio channel levels |
|
|
||
Amplifier Model Support |
|
CX, PowerLight™ 3 Series, DCA, and legacy V1 models |
