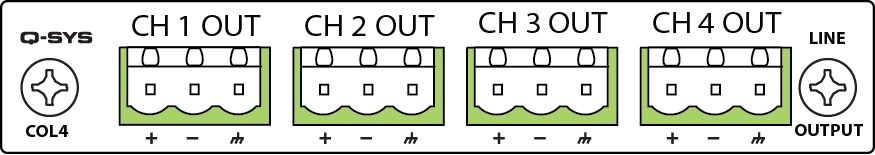

The COL4 card provides four channels of balanced, line-level analog output for interfacing between Q-SYS and outboard equipment such as non-DataPort amplifiers, recording devices and teleconference systems.
For configuration information, see Line Out (I/O Card).
About Type 2 Hardware
The COL4 card is Type 2 hardware.
Type 2 hardware provides new cables and connectors between the I/O cards and main boards in Cores and I/O Frames. Due to this change, the Type 2 hardware is not physically compatible with the older hardware. You can still integrate the new I/O Frames and Cores in the same system with older hardware, but the I/O cards are not interchangeable. Type 2 hardware can be identified by a yellow label on the back of the Core and I/O Frame, and the bottom of the I/O cards.
Specifications
In the following table, the dash — indicates the parameter is not available on this card.
| COL4 Card | ||
|---|---|---|
Dynamic range |
un-weighted |
> 112 dB |
|
A-weighted |
> 115 dB |
|
|
|
||
Distortion (20Hz - 20 kHz) |
+4 dBu (max) |
— |
|
2 dB below clip (max) |
< 0.004% THD+N |
|
|
|
||
Crosstalk (20 Hz - 20 kHz) |
Inter-channel (max) |
> 100 dB |
|
Inter-channel (typ) |
> 100 dB |
|
|
Intra-channel (max) |
> 100 dB |
|
|
Intra-channel (typ) |
> 110 dB |
|
|
|
||
Frequency Response |
20Hz - 20 kHz (max) |
± 0.5 dB |
|
20Hz - 20kHz (typ) |
± 0.2 dB |
|
|
|
||
Input Impedance |
Balanced (nominal) |
— |
|
Unbalanced (nominal) |
— |
|
|
|
||
Common Mode Rejection |
20Hz - 20kHz (Min) |
— |
|
20Hz - 20kHz (Typ) |
— |
|
|
|
||
Input Sensitivities |
Vrms |
— |
|
dBu |
— |
|
|
dBv |
— |
|
Mute |
Electro-mechanical relays |
Infinite Attenuation |
Audio ConvertersGroup Delay (measured at 48 kHz) |
Analog to Digital Conversion (ADCs) |
— |
|
Digital to Analog Conversion (DACs) |
24-bit delta-sigma at 48 or 96 kHz sample rate |
|
|
Output |
0.25 ms |
|
|
|
||
Connectors |
|
Four 3-terminal Euro-style detachable terminal blocks |
|
|
||
User-configurable Options(software enabled) |
Phantom Power |
— |
|
Input Sensitivity |
— |
|
|
Output Trim Vrms (max) dBu (max) dBv (max) |
8.7 V 21 dBu 18.8 dBV |
|
|
Amplifier Standby |
— |
|
|
Mute |
— |
|
|
Enable Meters |
— |
|
|
Audio Output Levels |
— |
|
|
|
||
Amplifier Model Support |
— |
— |
