TSC-116w-G2 Touch Screen Controller

• Capacitive LCD Touch Surface: In-plane switching (IPS) technology
• High Resolution Display: 1920x1080 pixels with 350 Nits (brightness)
• Power Over Ethernet: Allows for simplified single cable installation
• Universal Mounting Options: Included accessories for mounting to US standard and European wall and junction boxes
• Versatile: Ability to wall mount in portrait or landscape orientation; optional table top mount accessory is available
• Complete design freedom: Drag and drop any control Q-SYS element from a Q-SYS design schematic into UCI Editor and easily deploy your design to the touch screen, without any programming experience. Q-SYS UCI Editor allows the import of room diagrams, corporate logos or other graphical elements in all major graphic file formats.

Add the TSC-116w-G2 to your design inventory from the Peripherals category. The following components are available for the TSC-116w-G2:

• Status/Control

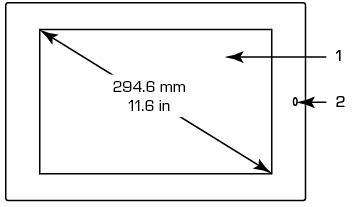

Front Panel

1. Viewing screen – 11.6 in / 294.6 mm
2. Light / motion detector – not currently active.

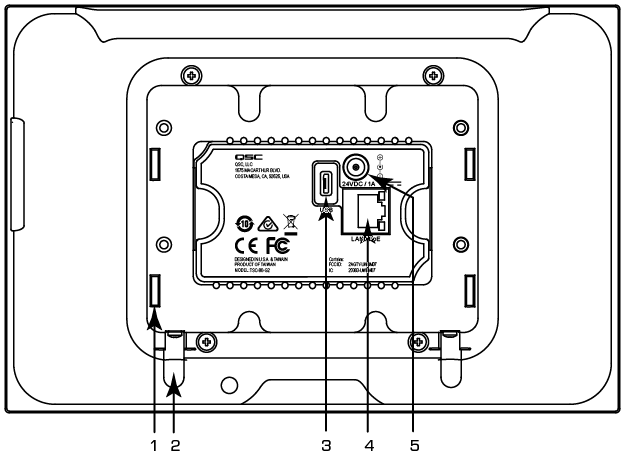

Rear Panel

1. Bracket-hook slots (x4)
2. Locking / mounting screws (2x)
3. USB connection – not used at this time
4. RJ45 – Q-LAN / PoE
5. 24VDC external power connection (power supply not included - see Specifications)

	TSC-55W-G2	TSC-80W-G2	TSC-116W-G2
Description	Capacitive Touch Surface, In-Plane Switching (IPS) technology, 16.7M colors.
Display (Front Panel)
Dimensions (HWD)
inches	5.85 x 3.44 x 1.36	8.8 x 5.8 x 1.4	12.35 x 7.93 x 1.59
millimeters	148.5 x 87.5 x 34.6	223.5 x 148.4 x 36.3	313.6 x 201.5 x 40.4
User Interface (diagonal viewing area)	5.5” (127 mm)	8.0” (203 mm)	11.6” (295 mm)
Resolution	1280 x 720	1280 x 800	1920 x 1080
Brightness	450 Nits	400 Nits	350 Nits
Panel Orientation	Landscape / Portrait
Rear Panel
RJ-45	LAN, 1000 Mbps, LEDs for network status and activity
Auxiliary Power Receptacle	TSC-55W-G2 only. 2-position latching Plug (not supplied) Manufacturer: JST Housing: VHR-2N Crimp terminals: SVH-21T-P1.1	Barrel connector: Negative contact – 5.5mm +/- 0.2mm Positive contact – 2.5mm +/- 0.2mm Length – 9.5mm +/- 0.3mm
Power
Power Over Ethernet	IEEE 802.3af class 3 PD (PoE). Receives power via LAN port
Auxiliary	DC power supply (not included) +24VDC @ 0.5A minimum	DC power supply (not included) +24VDC @ 1.0A minimum
Enclosure
Wall Mount	Yes	Yes	Yes
Table Top	No	Optional table top stand accessory	Optional table top stand accessory
Weight
Product Weight (net)	6.31 oz (179 g)	17.64 oz (500 g)	32.1 oz (910 g)
Shipping Weight (gross)	12.8 oz. (363g)	29.6 oz. (839g)	56.0 oz. (1588g)
Environment
Operating Temperature	32°-122° F (0°-50° C)
BTUs	17 typical	23 typical	30 typical
Humidity	5 to 85% RH, non-condensing
Vibration	16 Grms
Agency	IEEE 802.3af, IEEE 802.3ab, FCC 47 CFR Part 15 Class B, IC ICES-003, EN55032, EN55022, EN55024, EU ROHS DIR, CHINA ROHS DIR, WEEE, RCM, EFUP 10YR
