Features
- Capacitive LCD touch surface: In-plane switching (IPS) technology
- High resolution display: 960x540 pixels with 400 Nits (brightness)
- Power over Ethernet: Allows for simplified single cable installation
- Universal mounting options: Included accessories for mounting to US standard and European wall and junction boxes
- Versatile: Ability to operate in portrait or landscape orientation
- Complete design freedom: Q-SYS Designer Software includes User Control Interface (UCI) tool for customizable user control
Design Components
Add the TSC-47w-G2 to your design inventory from the Peripherals category. The following components are available for the TSC-47w-G2:
Hardware Attributes

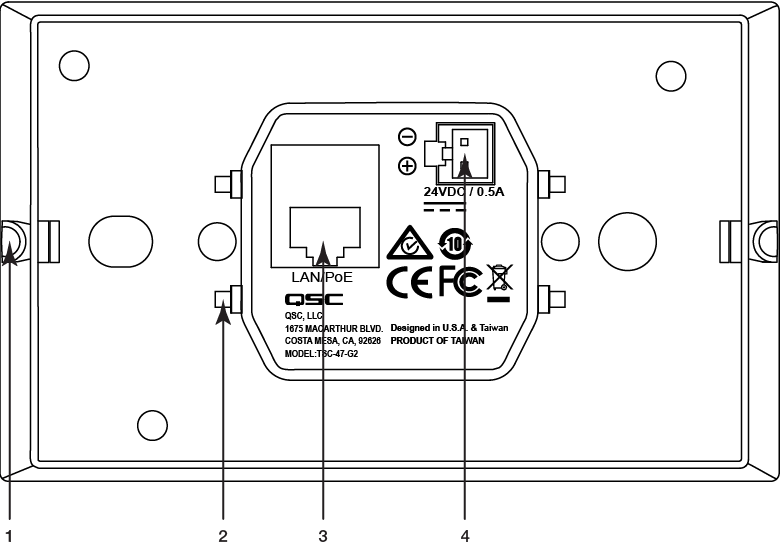

Rear Panel
- Security lock/mounting screws (2x) for locking the Touchscreen Controller to the installed Universal Wall-Mounting-Bracket
- Mounting clips (4x) for holding the Touchscreen Controller to the Universal Wall-Mounting-Bracket before tightening the security screws
- Female RJ45 for connection to Q-LAN. PoE capable
- 24VDC external power supply connection The power supply is not included - see Specifications for power supply details.
Specifications
|
Display (Front Panel) |
||
|
User Interface |
4.7 in. (119 mm) diagonal viewing area HD Projected capacitive touch Multi-position touch and gesture surface, in-plane switching (IPS) technology, 16.7M colors |
|
|
Resolution |
960x540 |
|
|
Brightness |
400 Nits |
|
|
Rear Panel |
||
|
RJ-45 |
LAN, 1000 Mbps, LEDs for network status and activity |
|
|
Auxiliary Power Receptacle |
2-position latching |
Plug (not supplied) Manufacturer: JST Housing: VHR-2N Crimp terminals: SVH-21T-P1.1 |
|
Power |
||
|
Power Over Ethernet |
IEEE 802.3af class 3 PD (PoE). Receives power via LAN port |
|
|
Auxiliary |
DC power supply (not included) +24VDC @ 0.5A minimum |
|
|
Dimensions |
||
|
Panel Dimensions (HWD) |
3.1 in. X 5.2 in. X 1.4 in. (80 mm X 132 mm X 35 mm) |
|
|
Screen Dimensions |
4.7 in. (119 mm) diagonal viewable area |
|
|
Weight |
||
|
Product Weight (net) |
6 oz. (171 g) |
|
|
Shipping Weight (gross) |
8 oz. (227 g) |
|
|
Environment |
||
|
Operating Temperature |
32°-122° F (0°-50° C) |
|
|
BTUs |
40 maximum, 23 typical |
|
|
Humidity |
5 to 85% RH, non-condensing |
|
|
Vibration |
20 grms |
|
|
Agency |
IEEE 802.3af, IEEE 802.3ab, FCC 47 CFR Part 15 Class B, IC ICES-003, EN55032, EN55022, EN55024, EU ROHS DIR, CHINA ROHS DIR, WEEE, RCM, EFUP 10YR |
|
