Features
- Consolidate Dialing and Control: In addition to the dialing functionality for your conferences, this 7" screen (800 x 480) can be used to control a myriad of third-party devices prevalent in boardrooms and meeting rooms via the Core (no additional control processor box required).
- BYOD Options: Allows meeting participants to interface 2-way audio from Q-SYS to UC or web conferencing applications like Skype for Business™ and Go-to-Meeting™ via the touchscreen's micro USB connection.
- Capacitive Touch Technology: Eliminates physical knobs and buttons increasing product reliability.
- Single drop PoE cabling: Ethernet connection haves for simplified wire terminations without the need for additional power wiring.
- Table Mounting System: Carefully designed weighted base with rubber pad prevents the touchscreen from sliding, while the included threaded brass Mounting Post offers permanent through-table mounting with clean cable management
- Redundancy Options: TSC-7t provides two network ports for connection back to the Q-SYS Core.
Design Components
Add the TSC-7t to your design inventory from the Peripherals category. The following components are available for the TSC-7t, depending on its Properties:
- Status/Control
- USB Speakerphone In / Out (USB Audio Bridge)
- USB Sound Card In / Out (USB Audio Bridge)
- External USB Audio Device In / Out
Hardware Attributes
Front Panel

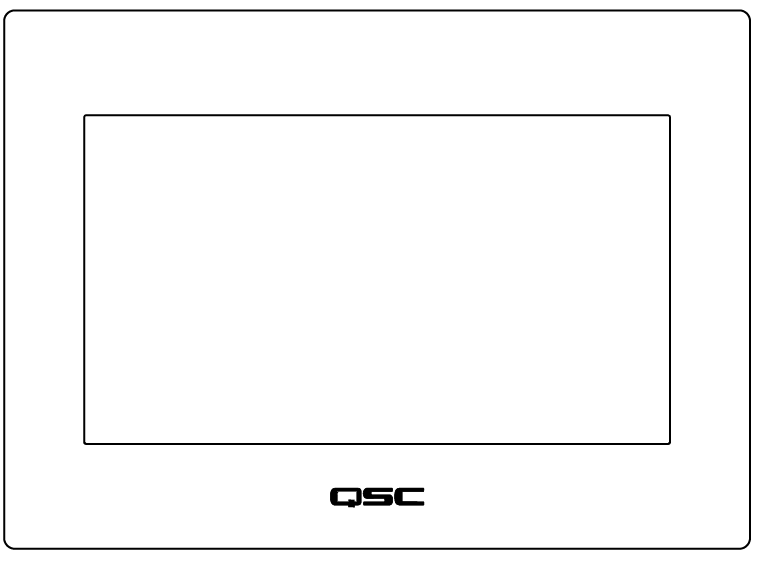

Capacitive-touch control surface and LCD viewing area (7" diagonal)

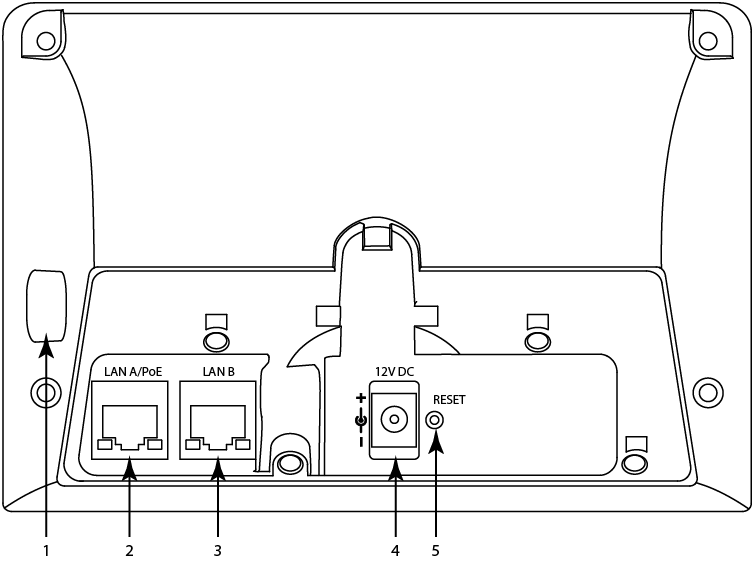

Rear Panel
- USB 2.0 Micro-AB OTG interface
- Q-SYS LAN A with PoE (RJ45)
- Q-Sys LAN B (redundancy) (RJ45)
- 12V DC AUX Power input (power supply not included)
- Unit Reset Button
Specifications
|
Display |
|
|
LCD |
7” Projected Capacitive Touch (five coordinate simultaneous touch sensitivity) |
|
Luminance |
400 nits (400 lumen/candela per square meter) |
|
Resolution |
800x400 |
|
Rear Panel Control |
Reset Button (Use a paper clip or similar tool to reboot the unit) |
|
Power |
|
|
PoE (Power over Ethernet) |
IEEE 802.3af class 3 device via LAN A |
|
Optional Power Source (not included) |
12V DC AUX Power source (not supplied) 12V DC @ 1A (12W) Barrel connector: Negative contact – 5.5mm +/- 0.2mm Positive contact – 2.5mm +/- 0.2mm Length - 9.5mm +/- 0.3mm |
|
Wireless connectivity |
Bluetooth 4.0 + HS |
|
Rear Panel Connectors |
|
|
RJ45 (x2) |
LAN A (PoE) and LAN B ports (10/100/1000 Mbps) |
|
Barrel connector: Power inlet |
Accommodates 12V DC AUX Power source |
|
Side Connector |
USB 2.0 Micro-AB OTG |
|
Operating temperature range |
0C to 50C |
|
Dimensions (HWD) |
4.7" x 7.8" x 5.0" (119 mm x 198 mm x 127 mm) |
|
Weight |
|
|
Net |
1.9 lbs. (.86 kg) |
|
Shipping |
3.1 lbs. (1.4 kg) |
|
Environmental |
|
|
BTUs |
40 max, 23 typical |
|
Humidity |
90% rh, non-condensing |
|
Vibration |
20 Grms |
