TSC-7w Touch Screen Controller

The TSC-7w Wall Touch Screen Controller combines capacitive touch technology with a bright 400 nits, 800 x 480 full color LCD for state-of-the-art control of a Q-SYS system. Touchscreen control is the ideal user-interface for sophisticated systems in which control needs can range from a few simple parameters to recall of global snapshots. The TSC-7w can be used to control much more than just audio; a wide variety of equipment can be managed utilizing the Q-SYS Core’s GPIO and TCP/IP instruction mechanisms providing true one-touch control of third-party devices.

Note: This topic provides an overview of the TSC-7w peripheral. For installation instructions, see the Hardware Installation Manual online.

ClosedFeatures
  • Consolidate Dialing and Control: In addition to the dialing functionality for your conferences, this 7 inch screen (800 x 480) can be used to control a myriad of third-party devices prevalent in boardrooms and meeting rooms via the Core (no additional control processor box required).
  • Capacitive Touch Technology: Eliminates physical knobs and buttons increasing product reliability.
  • Single drop PoE cabling: Ethernet connection haves for simplified wire terminations without the need for additional power wiring.
  • Redundancy Options: TSC-7w provides two network ports for connection back to the Q-SYS™ Core.
ClosedDesign Components

Add the TSC-7w to your design inventory from the Peripherals category. The following components are available for the TSC-7w:

ClosedHardware Attributes

Front Panel

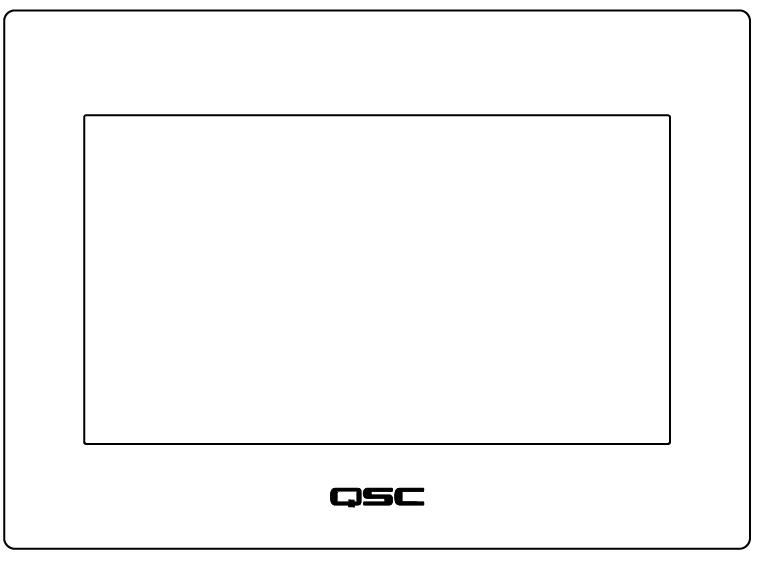

Capacitive-touch control surface and LCD viewing area (7" diagonal)

Rear Panel

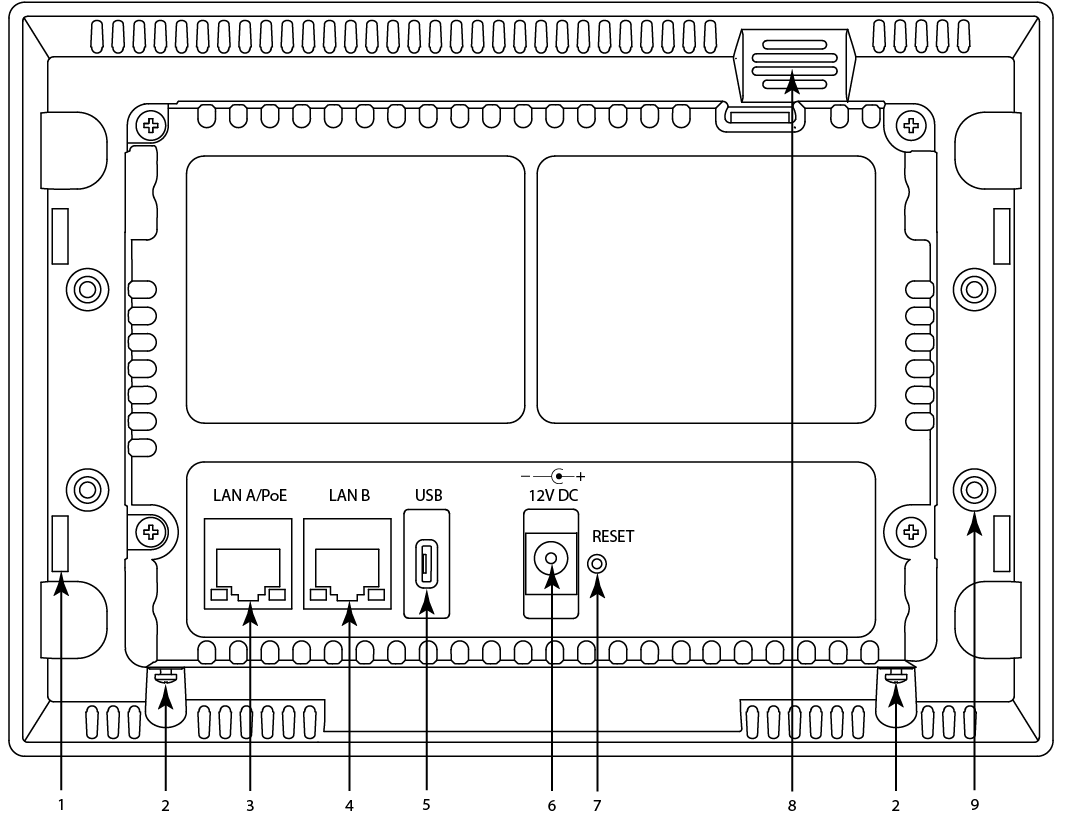

  1. Mounting-hook slots (4 places)
  2. Mounting screws (secures unit to the mounting ring)
  3. Q-Sys LAN A with PoE (RJ45)
  4. Q-Sys LAN B (redundant) (RJ45)
  5. USB 2.0 Micro-AB OTG interface
  6. 12V DC AUX Power input (power supply not included)
  7. Unit Reset button
  8. Built-in Speaker
  9. Screw holes (4 places - future use)
ClosedSpecifications

Display



LCD Touchscreen

7” Projected Capacitive Touch (dual coordinate simultaneous touch sensitivity)

Luminance

400 nits (400 lumen/candela per square meter)

Resolution

800x400

Rear Panel Control

Reset Button (Use a paper clip or similar tool to reboot the unit)

Power



PoE (Power over Ethernet)

IEEE 802.3af class 3 device via LAN A

Optional External Source (not included)

12V DC AUX Power source (not supplied)

12V DC @ 1A (12W)

Barrel connector:

Negative contact – 5.5mm +/- 0.2mm

Positive contact – 2.5mm +/- 0.2mm

Length - 9.5mm +/- 0.3mm

Rear Panel Connectors



RJ45 (x2)

LAN A (PoE) and LAN B ports (10/100/1000 Mbps)

USB type A port

USB 2.0 Micro-AB OTG

Barrel connector: Power input

Accommodates 12V DC AUX Power supply

Operating temperature range

0C to 50C

Dimensions (HWD)

5.6" x 7.8" x 1.5" (143 mm x 198 mm x 38 mm)

Weight



Net

1.4 lbs. (.64 kg)

Shipping

2.2 lbs. (1 kg)

Environmental



BTUs

40 max, 23 typical

Humidity

90% rh, non-condensing

Vibration

20 Grms

For more information, and to see a list of related documentation, visit the TSC-7w product page on the QSC website.
