Vonage
Use this topic to aid in configuring Q-SYS Softphone for Vonage.
-
Navigate to https://app.vonage.com/login
-
Log in with your account credentials.
-
From the menu on the left, click Admin.
-

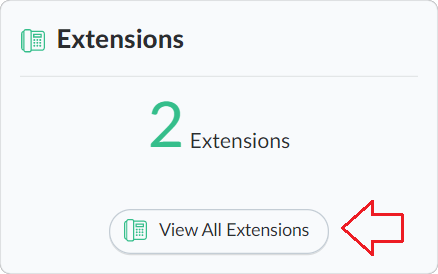

From the Admin Dashboard, scroll down to the Extensions section and click View All Extensions.
-

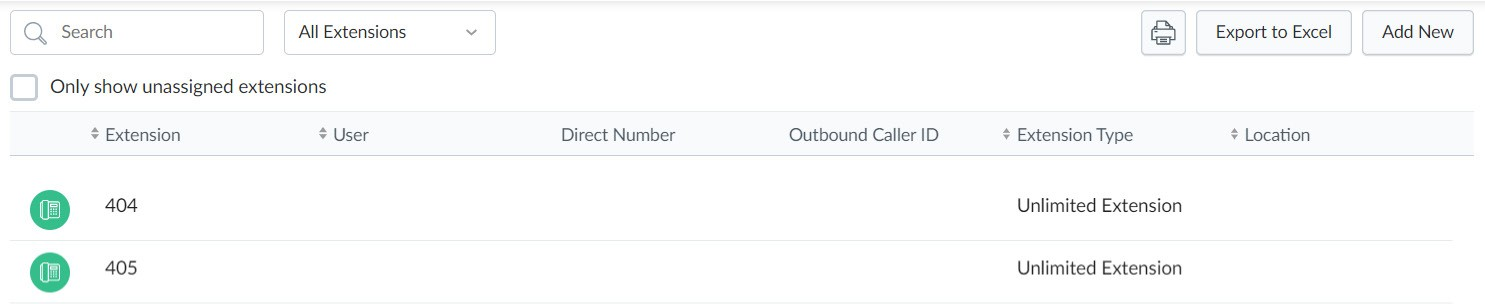

Hover over an existing extension and click Edit.
Note: The Extension Type must be "Unlimited Extension". The type "Mobile Unlimited Extension" will not pair with Q-SYS Softphone.
-

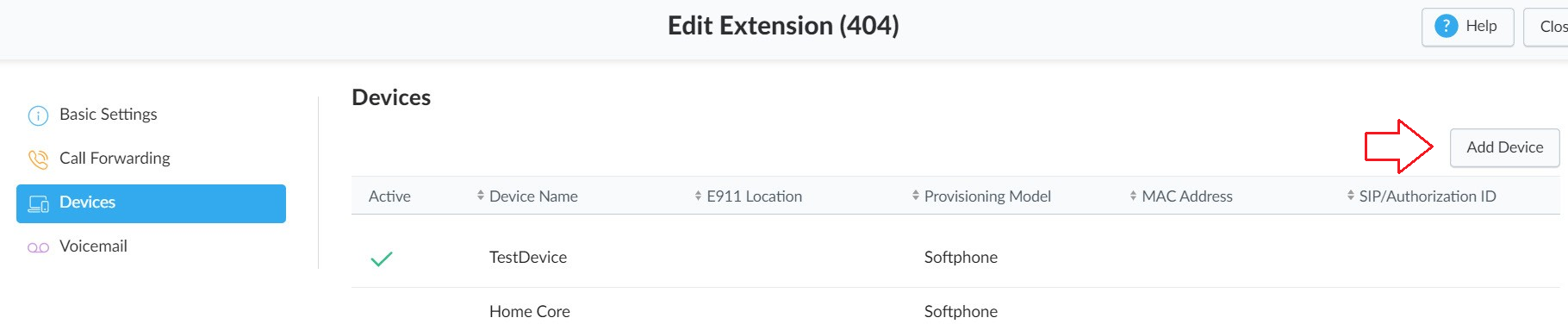

From the menu on the left, click Devices. In the upper right, click Add Device.
Tip: While you can edit an existing device, we recommend adding a new device because it allows multiple endpoints (i.e., Q-SYS Cores) to use the same extension.
-

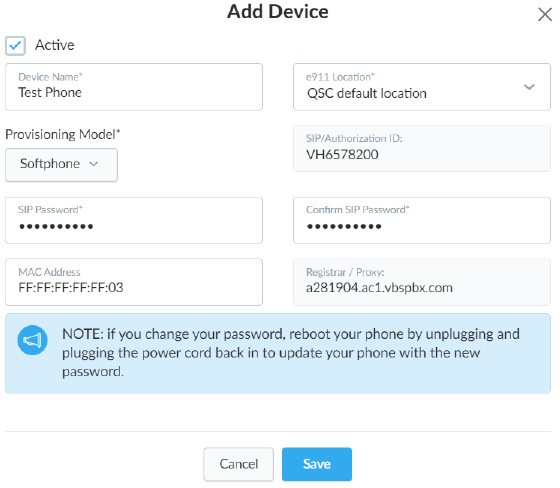

Fill out the Add Device fields:
-
Device Name: Your choice.
-
e911 Location: Your choice.
-
Provisioning Model: Softphone
-
SIP/Authorization ID: Defined by the Vonage account. Note this information for later.
-
SIP Password: Create a new SIP password. Note that the password is unreadable and can only be changed.
-
MAC Address: Type a bogus address, such as the one shown in the image below. However, note that you cannot reuse a MAC address already being used by another extension in the Vonage account.
-
Registrar / Proxy: This is related to the Vonage account. For example: aXXXXXX.ac1.vbspbx.com, where XXXXXX is the account. Note this information for later.
-
-
Delete any previously existing devices for the extension you are using, if needed.
Refer to the Hosted SIP Configuration topic as a general guide for configuring Q-SYS Softphone for a hosted SIP provider. Use the following parameters to configure for compatibility with Vonage.
Terminology Cross-Reference
Use this table as a guide for converting Vonage terms to those that Q-SYS Softphone uses.
Vonage | Q-SYS Softphone |
---|---|
N/A |
Domain |
Registrar/Proxy |
Proxy |
Authorization ID |
Username* |
Password |
Password |
Authorization ID |
Authentication ID* |
* Username and Authentication ID are the same. Set both to the Vonage Authorization ID.
Configuration Notes
Username |
Authorization ID (this is not the subscriber number) Username and Authentication ID are not unique. |
Multiple Extensions |
Vonage does not lock down third-party SIP devices to a MAC address. This allows multiple Vonage Softphones per Core. |
DTMF |
RFC2833 is supported. DTMF INFO is not supported. |
Outbound SIP Ports |
All traffic uses port 5060. |
TLS/SRTP |
TLS and SRTP can be used together or individually. |
UDP and TCP |
Use port 5060. |
Domain |
Not required. |
Audio Codecs |
Vonage supports the following:
|
