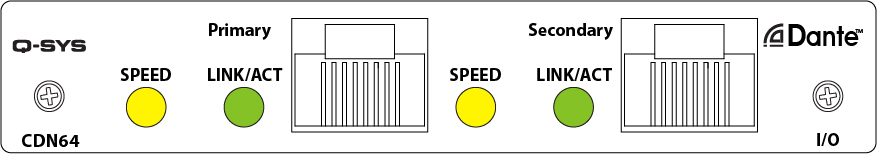

CDN64 – Dante Audio Bridge Card
The CDN64 card provides a link for up to 64x64 channels at 48 kHz from any Dante™ edge network, such as wireless microphones and digital mixers, directly into the Q-SYS ecosystem for advanced processing and redistribution over Q-LAN for larger LAN and WAN IT infrastructures.
It offers sample rate conversion to and from other network audio transports such as CobraNet, AVB, and Q-LAN. Bridge CobraNet, Dante, AVB and Q-LAN audio networks together via Q-SYS.
For documents and other information, see the I/O Cards product page.
Applications
Interface Dante-enabled 'front-of-house' input sources with 'back-of-house' or 'facility-wide' Q-SYS solutions. The CDN64 Dante Bridge Card is ideal for use in performance venues such as theaters, auditoriums, convention centers, and houses of worship.
About Type 2 Hardware
The CDN64 card is Type 2 hardware.
Type 2 hardware provides new cables and connectors between the I/O cards and main boards in Cores and I/O Frames. Due to this change, the Type 2 hardware is not physically compatible with the older hardware. You can still integrate the new I/O Frames and Cores in the same system with older hardware, but the I/O cards are not interchangeable. Type 2 hardware can be identified by a yellow label on the back of the Core and I/O Frame, and the bottom of the I/O cards.
Specifications
|
CDN64 Card |
|
|---|---|
|
Description |
Dante network audio input and output bridge card |
|
Capacity and Sample Rate Support 1 |
64x64 channels at 44.1/48kHz 32x32 channels at 88.2/96kHz 16x16 channels at 176.4/192kHz |
| Connectors | Dual Female RJ45 |
1. Sample rate conversion to Q-SYS system standard 48 kHz. There is an SRC at the inputs and outputs with a delay of 2 ms each. |
|
