CIAES-16 – AES/EBU Input Card
The CIAES16 is a 16-channel AES/EBU (AES3) 24-bit digital input Q-SYS peripheral card that can be used in any Q-SYS Core or I/O Frame. It utilizes IT industry standard RJ45 connectors, and provides a simple and cost-effective way to interface Q-SYS into an existing or new installation.
For configuration information, see 16-Channel AES3 In. For documents and other information, see the I/O Cards product page.
The CIAES-16 card is Type 2 hardware.
Type 2 hardware provides new cables and connectors between the I/O cards and main boards in Cores and I/O Frames. Due to this change, the Type 2 hardware is not physically compatible with the older hardware. You can still integrate the new I/O Frames and Cores in the same system with older hardware, but the I/O cards are not interchangeable. Type 2 hardware can be identified by a yellow label on the back of the Core and I/O Frame, and the bottom of the I/O cards.
CIAES-16 Card | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Dynamic range |
un-weighted |
— |
|||||||||||||||
A-weighted |
— |
||||||||||||||||
Distortion (20Hz - 20 kHz) |
Max Input Level Setting |
— |
|||||||||||||||
+27 dBu (max) |
— |
||||||||||||||||
0 dBu (max) |
— |
||||||||||||||||
-27 dBu (max) |
— |
||||||||||||||||
-54 dBu (max) |
— |
||||||||||||||||
Crosstalk (20 Hz - 20 kHz) |
Inter-channel (max) |
— |
|||||||||||||||
Inter-channel (typ) |
— |
||||||||||||||||
Intra-channel (max) |
— |
||||||||||||||||
Intra-channel (typ) |
— |
||||||||||||||||
Frequency Response |
20Hz - 20 kHz (max) |
— |
|||||||||||||||
20Hz - 20kHz (typ) |
— |
||||||||||||||||
Mute |
Digital Mute |
Infinite Attenuation |
|||||||||||||||
Input Impedance |
Balanced (nominal) |
— |
|||||||||||||||
Unbalanced (nominal) |
— |
||||||||||||||||
Common Mode Rejection |
20Hz - 20kHz (Min) |
— |
|||||||||||||||
20Hz - 20kHz (Typ) |
— |
||||||||||||||||
Input levelAdjustable in 1 dB steps |
Vrms |
— |
|||||||||||||||
dBu |
— |
||||||||||||||||
dBv |
— |
||||||||||||||||
Audio Converters
Group Delay |
Analog to Digital Conversion (ADCs) |
— |
|||||||||||||||
Digital to Analog Conversion (DACs) |
— | ||||||||||||||||
|
0.062 ms |
||||||||||||||||

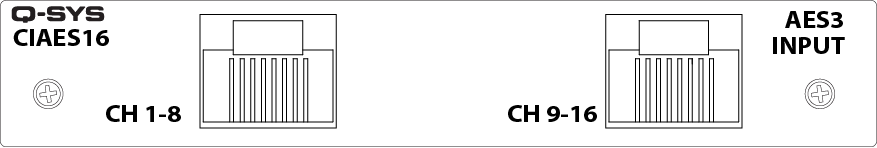

Connectors |
— |
Two RJ45 connectors |
|||||||||||||||
