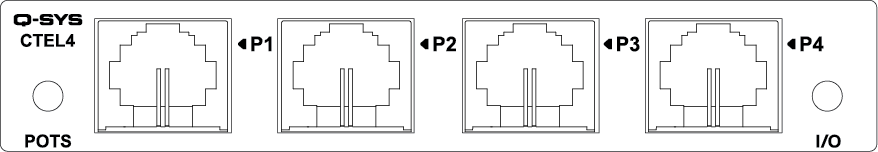

CTEL4 – Analog Telephony Card
The CTEL4 card provides four RJ-11 interfaces to connect the Q-SYS Core or I/O Frame to analog telephony (POTS) environments.
For configuration information, see POTS Controller, POTS In, and POTS Out. For documents and other information, see the I/O Cards product page.
Product Identification Numbers
US: 6M2BR01ACTEL4
IC: 20383-CTEL4
The CTEL4 card is Type 2 hardware.
Type 2 hardware provides new cables and connectors between the I/O cards and main boards in Cores and I/O Frames. Due to this change, the Type 2 hardware is not physically compatible with the older hardware. You can still integrate the new I/O Frames and Cores in the same system with older hardware, but the I/O cards are not interchangeable. Type 2 hardware can be identified by a yellow label on the back of the Core and I/O Frame, and the bottom of the I/O cards.
Due to electrical current limitations imposed on telephony devices, there is a limit to the number of CTEL4 cards that can be installed in Q-SYS host hardware.
Host Hardware |
Available I/O Slots |
Max CTEL4 Cards Allowed |
---|---|---|
Q-SYS Core 510 Series |
8 |
3 |
Q-SYS I/O Frame |
4 |
3 |
Q-SYS Core 3100, Core 1100 |
1 |
1 |
Note: The CTEL4 card limits do not affect other Q-SYS I/O cards. All other Q-SYS I/O cards (in any combination) may be installed into a host product alongside the supported CTEL4 maximums.
The POTS Controller component controls the features of the Q-SYS interface with a Plain Old Telephone Service (POTS).
If you are connecting to an analog phone system, you can connect from the wall RJ-11 jack directly to Q-SYS hardware supporting a POTS connection:
- The Core 110f and Core 110c provide a single RJ-11 telephone connection.
- The CTEL4 – Analog Telephony Card provides four RJ-11 telephone connections.
If you are connecting to a digital system, you can use an FXO Gateway that has an analog POTS connection and a network connection. For more information, visit the POTS Controller topic.
Technical Specifications |
|
---|---|
Input / Output Impedance |
600 ohms, nominal |
Frequency Response |
300Hz - 3.3kHz +/- 0.5dB |
Dynamic Range |
54 dB |
Station Port Compatibility |
Two-wire ring start |
Ringer Equivalence |
CTEL4: 0.0B Core 110f: 0.1 Core 11c: 0.1 |
Electronic or 1A2 Line Key |
No1 |
PABX Loop |
No1 |
Trunk Port Compatibility |
Two-wire loop start |
Number of phone lines |
CTEL4: 4 lines Core 110f: 1 line Core 110c: 1 line |
Loop Current Interruption (CPC Pulse) |
Interpreted as line disconnect |
1. Each Q-SYS phone line is meant to be connected to a single PSTN line (FXO). It does not control a multi-line PBX or interface with an FXS.
