TSC-116w-G2

The TSC-116w-G2 In-Wall or Table Top Touch Screen Controller combines capacitive touch technology with a bright, high resolution full color LCD for state-of-the-art control of a Q-SYS system. Control elements and layout for GUIs on this versatile touch screen controller are completely customizable to provide end users a full range of controls, from complete system control and monitoring, to one-touch deployments of pre-programmed presets.

Note: This topic provides an overview of the TSC-116w-G2 peripheral. For installation instructions, see the Hardware User Guide online.

  • Capacitive LCD Touch Surface: In-plane switching (IPS) technology
  • High Resolution Display: 1920x1080 pixels with 350 Nits (brightness)
  • Power Over Ethernet: Allows for simplified single cable installation
  • Universal Mounting Options: Included accessories for mounting to US standard and European wall and junction boxes
  • Versatile: Ability to wall mount in portrait or landscape orientation; optional table top mount accessory is available
  • Complete design freedom: Drag and drop any control Q-SYS element from a Q-SYS design schematic into UCI Editor and easily deploy your design to the touch screen, without any programming experience. Q-SYS UCI Editor allows the import of room diagrams, corporate logos or other graphical elements in all major graphic file formats.

Add the TSC-116w-G2 to your design inventory from the Peripherals category. The following components are available for the TSC-116w-G2:

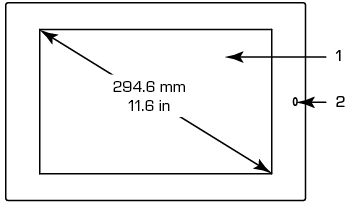

Front Panel

  1. Viewing screen – 11.6 in / 294.6 mm
  2. Light / motion detector – not currently active.

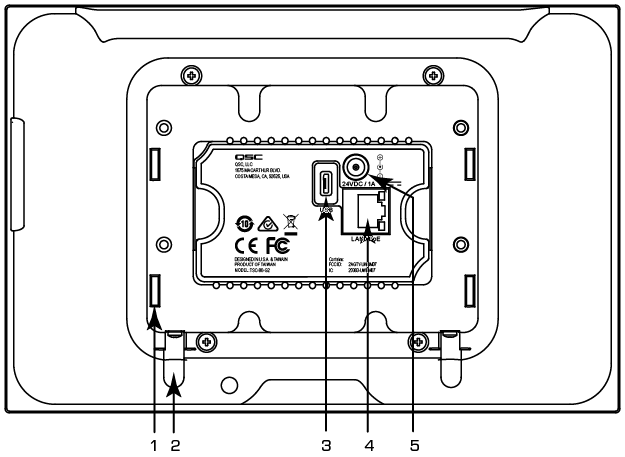

Rear Panel

  1. Bracket-hook slots (x4)
  2. Locking / mounting screws (2x)
  3. USB connection – not used at this time
  4. RJ45 – Q-LAN / PoE
  5. 24VDC external power connection (power supply not included - see Specifications)


TSC-55W-G2

TSC-80W-G2

TSC-116W-G2

Description

Capacitive Touch Surface, In-Plane Switching (IPS) technology, 16.7M colors.

Display (Front Panel)



Dimensions (HWD)



inches

5.85 x 3.44 x 1.36

8.8 x 5.8 x 1.4

12.35 x 7.93 x 1.59

millimeters

148.5 x 87.5 x 34.6

223.5 x 148.4 x 36.3

313.6 x 201.5 x 40.4

User Interface (diagonal viewing area)

5.5” (127 mm)

8.0” (203 mm)

11.6” (295 mm)

Resolution

1280 x 720

1280 x 800

1920 x 1080

Brightness

450 Nits

400 Nits

350 Nits

Panel Orientation

Landscape / Portrait



Rear Panel



RJ-45

LAN, 1000 Mbps, LEDs for network status and activity

Auxiliary Power Receptacle

TSC-55W-G2 only.

2-position latching Plug (not supplied)

Manufacturer: JST

Housing: VHR-2N

Crimp terminals: SVH-21T-P1.1

Barrel connector:

Negative contact – 5.5mm +/- 0.2mm

Positive contact – 2.5mm +/- 0.2mm

Length – 9.5mm +/- 0.3mm

Power



Power Over Ethernet

IEEE 802.3af class 3 PD (PoE). Receives power via LAN port

Auxiliary

DC power supply (not included) +24VDC @ 0.5A minimum

DC power supply (not included) +24VDC @ 1.0A minimum

Enclosure



Wall Mount

Yes

Yes

Yes

Table Top

No

Optional table top stand accessory

Optional table top stand accessory

Weight



Product Weight (net)

6.31 oz (179 g)

17.64 oz (500 g)

32.1 oz (910 g)

Shipping Weight (gross)

12.8 oz. (363g)

29.6 oz. (839g)

56.0 oz. (1588g)

Environment



Operating Temperature

32°-122° F (0°-50° C)

BTUs

17 typical

23 typical

30 typical

Humidity

5 to 85% RH, non-condensing

Vibration

16 Grms



Agency

IEEE 802.3af, IEEE 802.3ab, FCC 47 CFR Part 15 Class B, IC ICES-003, EN55032, EN55022, EN55024, EU ROHS DIR, CHINA ROHS DIR, WEEE, RCM, EFUP 10YR

For more information, and to see a list of related documentation, visit the TSC-116w-G2 product page on the QSC website.
