TSC-55w-G2
The TSC-55w-G2 In-Wall Touch Screen Controller combines capacitive touch technology with a bright, high resolution full color LCD for state-of-the-art control of a Q-SYS system. Control elements and layout for GUIs on this versatile touch screen controller are completely customizable to provide end users a full range of controls, from complete system control and monitoring, to one-touch deployments of pre-programmed presets.
Note: This topic provides an overview of the TSC-55w-G2 peripheral. For installation instructions, see the Hardware User Guide online.
- Capacitive LCD Touch Surface: In-plane switching (IPS) technology
- High Resolution Display: 1280x720 pixels with 400 Nits (brightness)
- Power Over Ethernet: Allows for simplified single cable installation
- Universal Mounting Options: Included accessories for mounting to US standard and European wall and junction boxes
- Versatile: Ability to operate in portrait or landscape orientation
- Complete design freedom: Drag and drop any control Q-SYS element from a Q-SYS design schematic into UCI Editor and easily deploy your design to the touch screen, without any programming experience. Q-SYS UCI Editor allows the import of room diagrams, corporate logos or other graphical elements in all major graphic file formats.
Add the TSC-55w-G2 to your design inventory from the Peripherals category. The following components are available for the TSC-55w-G2:

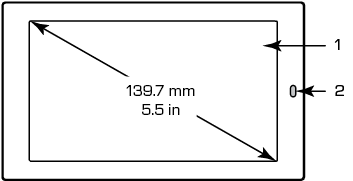

Front Panel
- Viewing screen, 5.5 in, (139.7 mm) diagonal
- Light / motion detector – currently inactive.

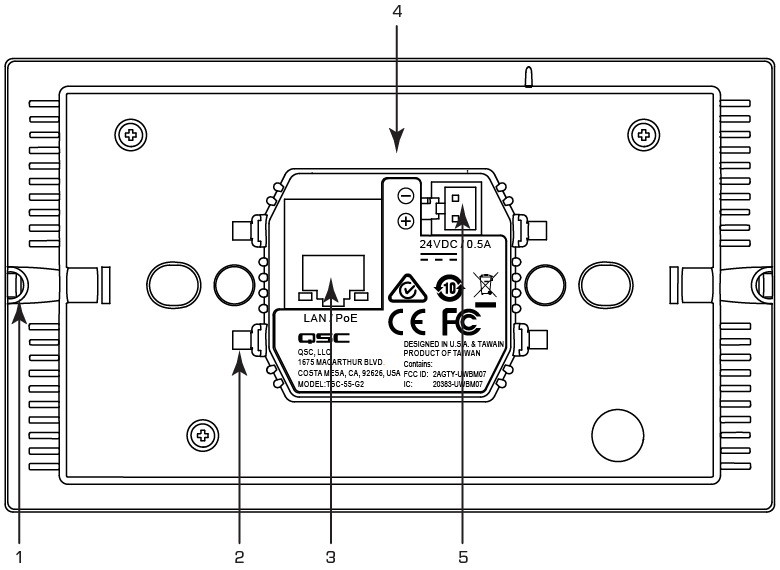

Rear Panel
- Locking / mounting screws (2x)
- Mounting clips (4x)
- RJ45 – Q-LAN / PoE
- USB Port (not visible) currently inactive
- 24VDC external power connection (power supply not included - see Specifications)
TSC-55W-G2 |
TSC-80W-G2 |
TSC-116W-G2 |
|
---|---|---|---|
Description |
Capacitive Touch Surface, In-Plane Switching (IPS) technology, 16.7M colors. |
||
Display (Front Panel) |
|||
Dimensions (HWD) |
|||
inches |
5.85 x 3.44 x 1.36 |
8.8 x 5.8 x 1.4 |
12.35 x 7.93 x 1.59 |
millimeters |
148.5 x 87.5 x 34.6 |
223.5 x 148.4 x 36.3 |
313.6 x 201.5 x 40.4 |
User Interface (diagonal viewing area) |
5.5” (127 mm) |
8.0” (203 mm) |
11.6” (295 mm) |
Resolution |
1280 x 720 |
1280 x 800 |
1920 x 1080 |
Brightness |
450 Nits |
400 Nits |
350 Nits |
Panel Orientation |
Landscape / Portrait |
||
Rear Panel |
|||
RJ-45 |
LAN, 1000 Mbps, LEDs for network status and activity |
||
Auxiliary Power Receptacle |
TSC-55W-G2 only. 2-position latching Plug (not supplied) Manufacturer: JST Housing: VHR-2N Crimp terminals: SVH-21T-P1.1 |
Barrel connector: Negative contact – 5.5mm +/- 0.2mm Positive contact – 2.5mm +/- 0.2mm Length – 9.5mm +/- 0.3mm |
|
Power |
|||
Power Over Ethernet |
IEEE 802.3af class 3 PD (PoE). Receives power via LAN port |
||
Auxiliary |
DC power supply (not included) +24VDC @ 0.5A minimum |
DC power supply (not included) +24VDC @ 1.0A minimum |
|
Enclosure |
|||
Wall Mount |
Yes |
Yes |
Yes |
Table Top |
No |
Optional table top stand accessory |
Optional table top stand accessory |
Weight |
|||
Product Weight (net) |
6.31 oz (179 g) |
17.64 oz (500 g) |
32.1 oz (910 g) |
Shipping Weight (gross) |
12.8 oz. (363g) |
29.6 oz. (839g) |
56.0 oz. (1588g) |
Environment |
|||
Operating Temperature |
32°-122° F (0°-50° C) |
||
BTUs |
17 typical |
23 typical |
30 typical |
Humidity |
5 to 85% RH, non-condensing |
||
Vibration |
16 Grms |
||
Agency |
IEEE 802.3af, IEEE 802.3ab, FCC 47 CFR Part 15 Class B, IC ICES-003, EN55032, EN55022, EN55024, EU ROHS DIR, CHINA ROHS DIR, WEEE, RCM, EFUP 10YR |
For more information, and to see a list of related documentation, visit the TSC-55w-G2 product page on the QSC website.
