Server Core X10

The Server Core X10 is a high-performance, compact Q-SYS processor designed to power medium-sized projects with ease. It delivers the full capabilities of Q-SYS processing without the need for scaling licenses. Housed in a sleek 1RU rackmount chassis with a front-panel display, multiple network ports, and USB connectivity, Server Core X10 offers seamless integration into any Q-SYS system.

  • 256 x 256 Network Audio Channels
  • Up to 128 x 128 Software Dante audio channels (8 x 8 included)
  • 64 AEC Processors
  • Up to 128 Multitrack audio players (16 channels by default)
  • 32 VoIP instances

The following Q-SYS Designer Software components are available for the Server Core X10:

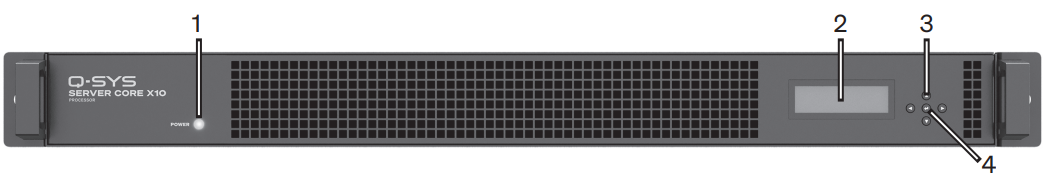

Front Panel

  1. Power light - lights up blue when the unit is powered on
  2. Front-panel display - displays pertinent information about the core, its network configuration, the system it is running, active faults, etc.
  3. Navigation buttons (up, down, left, right) - these buttons allow you to navigate through the menus on the front-panel display:
    1. The up and right buttons do the same thing: advance you to the next menu item
    2. The down and left buttons do the same thing: go back to the previous menu item
  4. ID/Select button - the center button is analogous to the ID button on other Q-SYS Core processors. Press to put the Core into ID mode for identification within Q-SYS Designer Software. Press again to turn off ID mode.

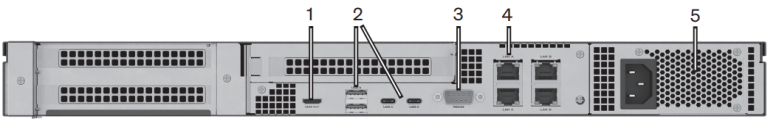

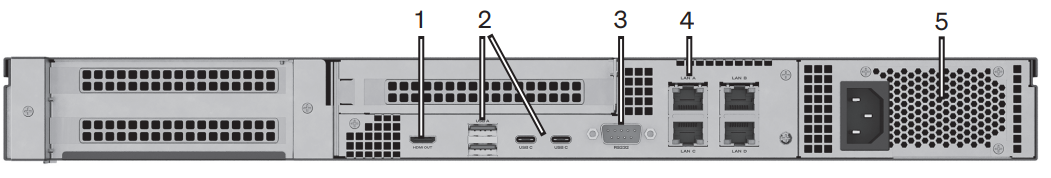

Rear Panel

  1. HDMI port: not supported.
  2. USB A and USB C ports: not supported.
  3. Serial communications RS232 (male DB-9): for connecting to serial devices.
  4. Q-SYS LAN ports (RJ45): from left to right; top row is LAN A and LAN B, bottom row is LAN C and LAN D.
  5. Power supply unit (PSU).

For complete product specs, refer to the Specifications Sheet on the Server Core X10 product page at qsys.com.
