NV-1-H-WE

The Q-SYS NV-1-H-WE wall-mount HDMI encoder enhances and extends the NV Series network video distribution into flexible and reconfigurable spaces, providing a single platform for network video distribution across every room type. The NV-1-H WE can be used alongside other Q-SYS NV Series network video endpoints, providing system design flexibility. Like all Q-SYS products, the NV-1-H-WE offers native integration into the Q-SYS platform, reducing complexity and accelerating deployment by tightly integrating device configuration, control and audio routing capabilities.

Note: This topic provides an overview of the NV-1-H-WE. For complete specifications, installation documentation, and product drawings, see the NV-1-H-WE product page on the Q-SYS website.

  • Single cable solution for video distribution
  • Native HDMI video distribution for Q-SYS
  • Q-SYS Shift™ adaptive video compression

Add the NV-1-H-WE to your design Inventory from the Video category. The following components are available for the NV-1-H-WE:

Standard Components

Related Components

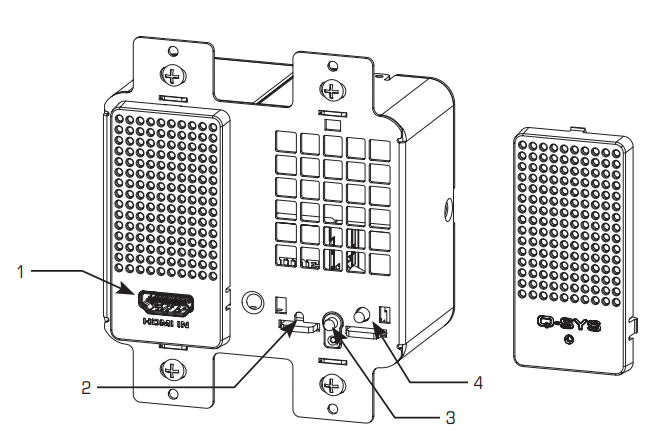

Front Panel

  1. HDMI In – HDMI 2.0 input with support for HDCP 2.3 and HDCP 1.4.
  2. Reset Button – (Behind perforated cover, recessed) Use a paper clip, or similar tool, to press and hold the reset button for 10 seconds to reset the NV-1-H-WE to factory values.
  3. Power / ID LED – Illuminates blue when the NV-1-H-WE is powered on. Blinks green when placed into ID Mode via ID Button or Q-SYS Peripheral Manager. Solid Green indicates valid HDMI input.
  4. ID Button – (Behind perforated cover) Locates the NV-1-H-WE in Q-SYS Designer Software and Q-SYS Peripheral Manager.

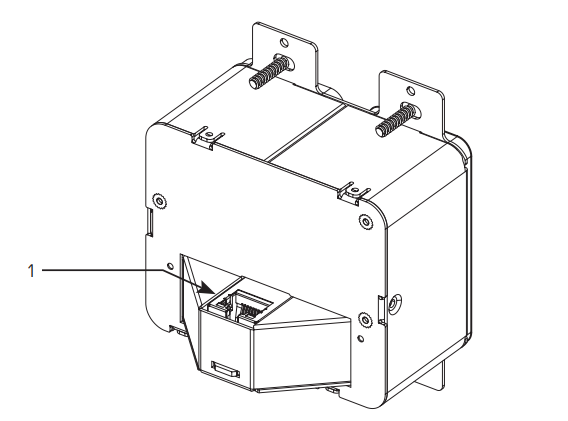

Rear Panel

  1. LAN / PoE – RJ-45 connector, 2.5GbE, 802.3 at Type 2 Class 4 (30W from PSE, 25.5W at NV-1-H-WE). For connection to Q-LAN.

The NV-1-H-WE uses Q-SYS Shift™ video compression to provide high-quality, low-latency video streaming supporting video formats up to 4k60 4:4:4 over a standard gigabit network. Q-SYS Shift™ leverages DCT and temporal compression technologies, much like those found in H.264 and H.265 video compression codecs. Q-SYS optimized Shift™ to provide flawless image quality from the most demanding content sources. Further, Shift™ intelligently manages and optimizes the resulting network bitrate by only refreshing changes within each frame, allowing for significantly reduced bandwidth usage as compared to other compression codecs.

Note: We do not support 4k60 without Display Stream Compression (DSC) or reduced blanking.

Modes

Multicast and unicast

Bitrates

10 Mbps – 800 Mbps

Streaming Protocol

RTP

Supported Video Formats1

Resolution

Frame Rate (Hz)

Chroma Sampling Level

Bit Depth

3840 x 2160 (4K UHD)

60, 59.94, 50, 30, 29.97, 25, 24

4:4:4

8 bit

3440 x 1440

60

4:4:4

8 bit

2560 x 1600

60

4:4:4

8 bit

2560 x 1440

60

4:4:4

8 bit

2560 x 1080

60, 59.94, 50, 30, 29.97, 25, 24

4:4:4

8 bit

1920 x 1200

60

4:4:4

8 bit

1920 x 1080 (1080p)

60, 59.94, 50, 30, 29.97, 25, 24

4:4:4

8 bit

1280 x 720 (720p)

60, 59.94, 50, 30, 29.97, 25, 24

4:4:4

8 bit

640 x 480

60

4:4:4

8 bit

* All video formats are progressive. 4:2:0 Chroma subsampling and HDR not supported.

1 This table is a small subset of the most common formats. Many other formats and timings are also supported.

Scaler

The NV-1-H-WE features a robust 4K60 4:4:4 scaler that can accommodate the most challenging resolution and frame rate conversions from network streams or local HDMI sources. The scaler is capable of operating in three modes (configurable within Q-SYS Designer Software):

  • Stretch-to-fit
  • Maintain aspect ratio
  • 1:1 pixel mapping

For complete product specs, refer to the Specifications Sheet on the NV-1-H-WE product page at qsys.com.
