Audio Recorder
The Audio File Recorder Component allows you to record from 1 to 4 tracks of audio. You can build a file name consisting of a prefix that you enter, then select from several combinations of prefix, time, date, and sequence. In addition, you can select the file format, bitrate / resolution and sample rate.
Note: The number of signal pins is variable and set in the component's Track Count Property.
Input Pins
Track 1 - n
Audio signal pins are represented by a () circle, and traditional wiring is represented by a thin black line. You can use Signal Names on audio signal pins.
By default, the Audio Recorder component is set to allow for 2 Tracks. You can choose between 1 and 4 Tracks.
Output Pins
This component does not have any output pins.

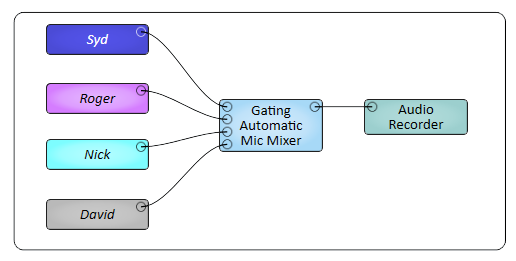

In this example, we have four Mics open at once. Through the Gating Automatic Mic Mixer, those signals are attenuated and then mixed out to an Audio Recorder.
Audio Recorder Properties
Track Count
Specifies the number of tracks recorded. The maximum number of tracks in a design is 4.
Graphic Properties
Label
Use the Label property to change the name of the component in the schematic. The Label property defaults to the component name. To learn more about renaming schematic elements, see Organizing Your Design.
Position
The coordinates reference a specific place in the schematic - for example,"100,100" (horizontal, vertical). 0,0 is the upper left corner of the schematic.
Fill
Sets the fill color of the component in the schematic.
Script Access Properties
Code Name
Displays the currently assign name for control access. You can use the auto-assigned name or customize it. Q-SYS will automatically check all Code Names in the design to ensure name is unique.
Script Access
Defines whether the component will be accessible by script and/or externally, or not at all. Choices include All, External, None (default), and Script.
- None (default) - Not accessible by any script, plugin, or by Q-SYS Remote Control Protocol (QRC).
- Script - Can be accessed by scripts, such as Text Controller, Block Controllers, and plugins only.
- External - Can only be accessed by 3rd party controls systems using component commands from the Q-SYS Remote Control Protocol (QRC).
- All - No restrictions, can be accessed by 3rd party control systems via Q-SYS Remote Control Protocol (QRC), or script objects or plugin objects.
Tip: Use Script Programmer Mode to quickly view the Script Access setting directly on the component in the design schematic without the need to disconnect from the Q-SYS Core processor.
Record
Starts the recording.
Stop
Stops the recording.
Root
Sets the root directory to any of the existing directories on the Core. This restricts the available Directories and Files to that which exists beneath the selected Root directory. There is a blank line at the top of the Root drop-down to remove the filter for the Directory drop-down. When the filter is removed, the Directory drop-down displays all directories and sub-directories. If for some reason, the Root directory specified by the Audio File Recorder no longer exists, this field turns red, along with the Directory and File fields.
Directory
With nothing selected in Root, this drop-down list displays all available directories and sub-directories on the Core. The Audio Files directory is selected by default.
If you select a different directory when a file is recording, and the file is not in the selected sub-directory, the file stops playing and the Status displays "Missing file". If the file is in the newly selected directory, the file stops playing, Status is OK, you must click the Play button to continue playing the file.
If for some reason, the Directory specified in this field by the Audio File Player no longer exists, this field turns red.
Prefix
User-defined prefix for the filename. Do not use any of the following in the filename:
- / slash
- \ backslash
- ? question mark
- % percent
- * Asterisk
- : Colon
- | vertical bar (or pipe)
- " quote
- < less than
- > Greater than
Include
Includes the Date, Time, or Sequence as preferred.
Filename
Displays the result of the Recipe selections.
Format
Select the format of the recorded file.
- MP3 – lossy compression
- FLAC – lossless compression
- WAV – uncompressed
Bitrate / Resolution (kbit per second)
Sets the number of bits transferred in one second.
- MP3 Default = 128 Range = 16 to 320
- WAV Default = 16 bit fixed Range = 16 bit fixed, 24 bit fixed, 32 bit float
- FLAC = 16 bit fixed to 24 bit fixed
Sample rate (kHz)
Sets the average number of samples obtained in one second.
Length
Displays the length of the recording. HH:MM:SS
Time available
The time available on the Core for recording. HH:MM:SS The available time depends on the size of the hard drive installed on the Core and the type of file selected.
Space available
The space available on the Core for recording. The available space depends on the size of the hard drive installed on the Core.
Life file length
Select a length of time to which a recording is limited.
Continuous recording mode
Continues recording until the Limit file length
Quantize rollover time
Time starts the new "rolled over" file on a multiple of the Limit Length selection. Minute long files start on the minute, hour long files start on the hour, and so on.
Cleanup files
Indicates which files are to be removed when they reach the selected age and/or size.
Maximum age
Files are deleted when the age limit you select is reached.
Selections range from 1 day to unlimited.
Must have something other than "never" selected in the Cleanup files field.
Total size Limit
Files are deleted when the age limit you select is reached.
Selections range from 100MB to 100GB, and space available.
Must have something other than "never" selected in the Cleanup files field.
The available Control Pins depend on settings in Properties.
Note: Text inputs are case sensitive and must be the entire string.
Pin Name |
Value |
String |
Position |
Pins Available |
---|---|---|---|---|
Bitrate/resolution 1 |
varies |
example: (MP3) 128kbit/sec (WAV / FLAC) 16 bit fixed |
N / A |
Input / Output |
Cleanup files |
never in directory matching prefix |
Input / Output |
||
Continuous |
0 1 |
false true |
0 1.00 |
Input / Output |
Directory |
example: mydirectory/ |
Input / Output | ||
Format |
MP3 WAV FLAC |
Input / Output | ||
Include Date |
0 1 |
false true |
0 1.00 |
Input / Output |
Include Sequence |
0 1 |
false true |
0 1.00 |
Input / Output |
Include Time |
0 1 |
false true |
0 1.00 |
Input / Output |
Length |
accumulated seconds |
HH:MM:SS |
N / A |
Output |
Length limit 2 |
varies |
max supported to 2 hours |
N / A |
Input / Output |
Maximum Age |
varies |
1 day to unlimited |
N / A |
Input / Output |
Name (filename) |
text (based on Recipe) |
Output |
||
Prefix |
text |
Input / Output | ||
Quantize rollover time |
0 1 |
false true |
0 1 |
Input / Output |
Record |
0 1 |
false true |
0 1 |
Input / Output |
Root |
text |
Input / Output | ||
Sample rate |
text |
Input / Output | ||
Space available |
|
|
|
Output |
Stop |
1 0 |
true false |
1 0 |
Input / Output |
Time available |
text (HH:MM:SS) | Output | ||
Total size limit |
text (100MB) Case Sensitive |
Input / Output | ||
1. The value output is equal to the number of bits. For example, 128kbit/sec gives a value of 128000.2. Text input only, output can be text or numeric. Numeric is the number associated with the selection, for example, 1 minute = 1, and 1 hour = 1. |
