I/O-USB Bridge

• Driverless USB 2.0 Connection
• Built for BYOD (plug and play)
• Resolutions up to 1080p
• Emulates webcam video and AEC speakerphone audio over single USB connection
• Emulates computer soundcard
• Bridges audio and video over Q-LAN to USB
• External Power Supply or PoE enabled (802.3af)

Add the I/O-USB Bridge to your design inventory from the Peripherals category. The following components are available for the I/O-USB Bridge, depending on its Properties:

• Status (I/O USB Bridge)
• USB Audio Bridge – Speakerphone / Sound Card In
• USB Audio Bridge – Speakerphone / Sound Card Out
• USB Video Bridge
• Serial Port (I/O USB Bridge)
• External USB Audio Device In
• External USB Audio Device Out

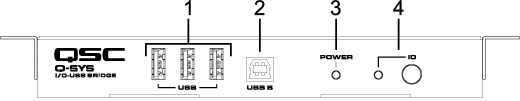

Front Panel

1. USB 2.0 Type A host ports—Total maximum current available from these ports is 500 mA with PoE or external 12 V 2A DC supply.
2. USB 2.0 Type B device port—Connect to a host PC to bridge Q-SYS audio and/or video (UAC / UVC).
3. Power LED indicator.
4. ID button and LED indicator—Press the button to identify this unit in Q-SYS Designer or Q-SYS Configurator. The LED blinks when this device's ID mode is enabled by pressing the ID button or through Q-SYS Designer or Q-SYS Configurator.

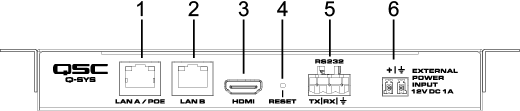

Rear Panel

1. LAN A / PoE port—for LAN connection. The I/O-USB Bridge is a PoE Enabled Device (802.3af). Use a suitable PoE network switch or supply through this port.
2. LAN B port—for LAN connection.
3. HDMI output port.
4. Reset switch. To reset the unit, insert a straightened paper clip or similar tool into this opening to press this switch for 10 seconds.
5. RS232 port.
6. External 12V DC power supply connection—for redundancy, or in the absence of a PoE supply. The minimum power requirements are 12 V, 1 A; to provide maximum current for multiple USB connections, use a 12 V, 2 A supply.

Supported Resolutions	(All aspect ratios 16:9, all refresh rates 30fps) MJPEG: 1080p, 720p, 576p YUY2: 360p, 270p, 180p
USB Connection	- USB 2.0 (UVC/UAC) driverless connection for Windows and OS X devices - Emulates webcam video driver, AEC speakerphone audio driver, and multi-channel soundcard driver over single USB connection
Power Supply	PoE Enabled Device (802.3af - Class 3) or 12v DC (1A)
Dimensions	1in x 3.35in x 7.2in (25mm x 85mm x 183mm)
Weight	1.1 lbs. (500g)
