TSC-3 Touch Screen Controller

The TSC-3 Networked Touch Screen Controller combines capacitive touch technology with a 320 x 240 full color LCD for state-of-the-art control of a Q-SYS system. Touchscreen control is the ideal user-interface for sophisticated systems in which control needs can range from a few simple parameters to recall of global snapshots. The TSC-3 can be used to control much more than just audio; a wide variety of equipment can be managed utilizing the Q-SYS Core’s GPIO and TCP/ IP instruction mechanisms providing true one-touch control of complete systems.

Note: This product is discontinued. Reference the TSC-7w Touch Screen Controller replacement model. For TSC-3 installation instructions, see the Hardware User Manual online.

Features

• Capacitive touch technology eliminates physical knobs and buttons increasing product reliability
• 3.5, 320 x 240 LCD display
• Connects with an RJ-45 10/100 Mbps port
• Fits into a standard U.S. 2-gang wall box and powered via PoE (Power over Ethernet) simplifies installation
• Hosts custom user-designed control interfaces created in Q-SYS Designer with ability to adjust nearly every system parameter
• Capable of displaying custom bitmapped graphic images

Design Components

Add the TSC-3 to your design inventory from the Peripherals category. The following components are available for the TSC-3:

• Status/Control

Hardware Attributes

Specifications

Front Panel Controls
Control surface	3.5 inch (89.9 mm) capacitive touch surface
Display
LCD	3.5 inch (89.9 mm) 4:3 color graphics display
Luminance	240 nit
Resolution	320 x 240 pixels0
Power Requirements	IEEE 802.3AF power over Ethernet (PoE)
Rear Panel Connectors
RJ45	10/100 Mbps
Finish	Black or White

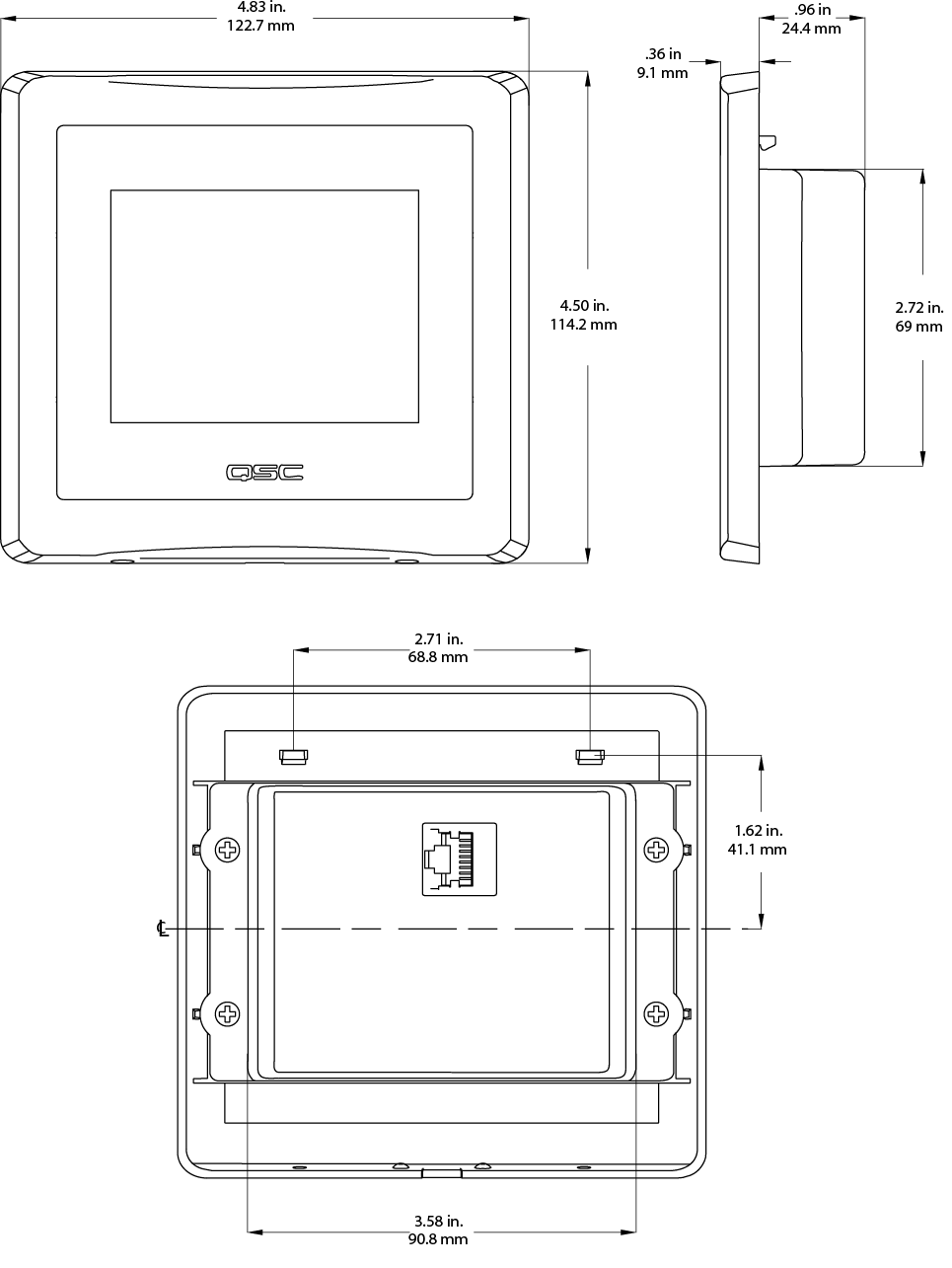

Dimensions (HWD)	4.5" x 4.83" x 1.32" (114.2 mm x 122.7 mm x 33.5 mm)

For more information about discontinued Q-SYS products, including related documentation, see the Q-SYS / Legacy DSP page on the QSC website.
