TSC-8 Touch Screen Controller

• Capacitive touch technology eliminates physical knobs and buttons increasing product reliability
• 8", 800 x 600 LCD with anti-glare safety glass
• Connects with dual RJ45 10/100/1000 Mbps connections for network redundancy
• Hosts custom user-designed control interfaces created in Q-Sys Designer with ability to adjust nearly every system parameter
• Capable of displaying custom bitmapped graphic images

Add the TSC-8 to your design inventory from the Peripherals category. The following components are available for the TSC-8:

• Status/Control

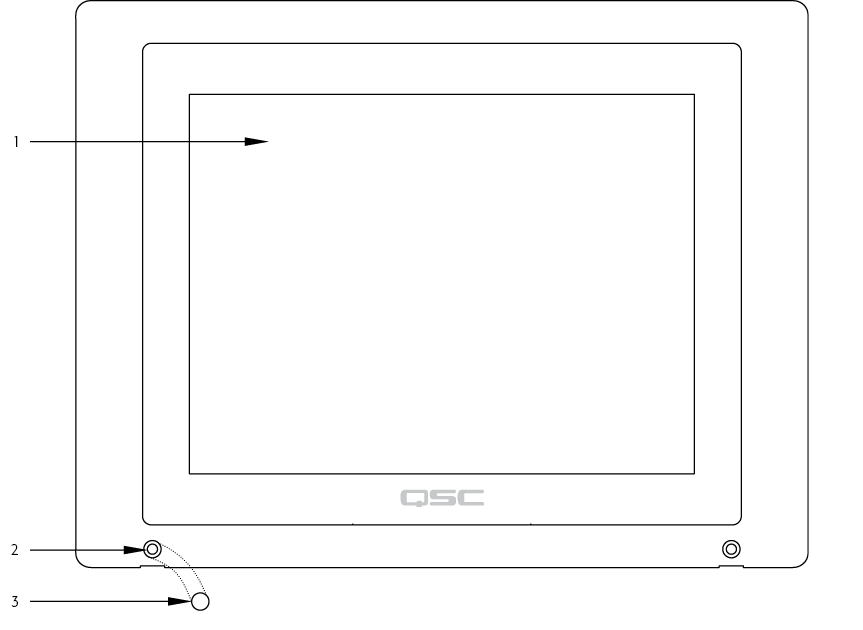

Front Panel

1. Capacitive-touch control surface and LCD viewing area (8.4" diagonal)
2. Bezel mounting points
3. Bezel mounting point cap

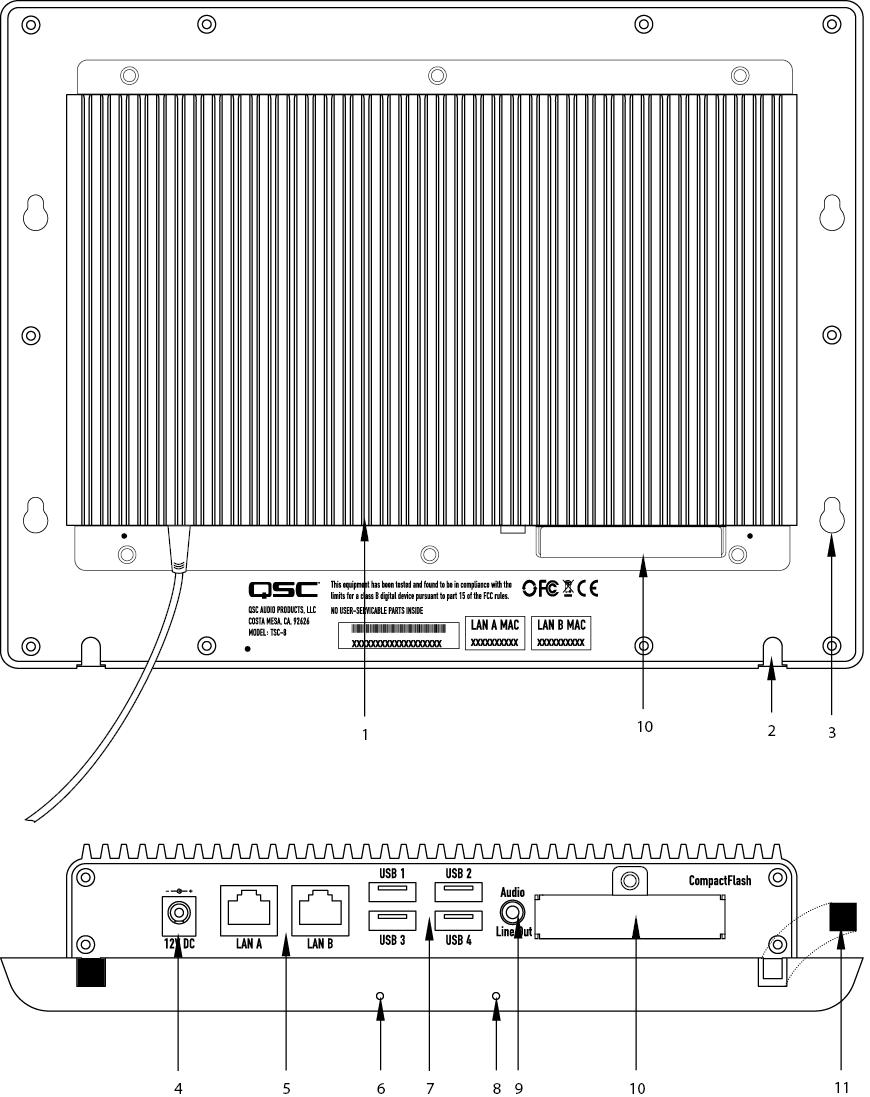

Rear and Connector Edge Panels

1. Cooling fins
2. Mounting point Standoff slots
3. Flange Standoff slots
4. +12 VDC Power inlet (power supply included)
5. LAN ports ( LAN A primary / LAN B redundant)
6. Factory Reset (on right side if you are facing the touchscreen)
7. USB 2.0 host port interfaces (type A) – not used
8. Device Restart (on left side if you are facing the touchscreen)
9. Audio line level output (1/8" jack) – not used
10. CompactFlash Cover
11. Slot Covers

Processing CPU	1.8 GHz Intel ATOM D525
Memory
Internal RAM	1 GB DDR3
External non-volatile	CompactFlash drive
Front Panel Controls
Control surface	8.4" capacitive touch surface
Display
LCD	8.4" 4:3 color graphics display
Luminance	450 nits (450 lumen/candela per square meter)
Resolution	800x600
Glass overlay	Anti-glare safety glass
Power Requirements	+12V DC supply (included) connected to AC mains (90V – 220V, 47Hz – 60Hz)
Power Source	100 VAC - 240 VAC, 50 Hz - 60 Hz, 1.5 A
+12 VDC	External supply (included)
Cord	Fixed 3-conductor, 18 AWG
Rear Panel Connectors
Barrel connector: Power inlet	Accommodates +12 VDC power supply
RJ45 (x2)	LAN A and LAN B ports (10/100/1000 Mbps)
USB type A ports (x4)	USB A - USB D: USB 2.0 host ports (not used)
CompactFlash receptacle	Accepts CompactFlash media. Supplied, and Required for operation.
3 mm phone jack	Audio Output (not used)
Finish	Black or White
Dimensions (HWD)
Touchscreen	7.66" x 9.75" x 2.36" (194.5 mm x 247.7 mm x 60 mm)
Back Box	7.4" x 9.53" x 3.06" (188 mm x 242 mm x 77.7 mm)
Back Box / Touchscreen Assembled	7.66" x 9.75" x 3.71" (194.5 mm x 247.7 mm x 94.2 mm)
Weight (Net)
Touchscreen	4.2 lbs. (1.9 kg)
Back Box	3.0 lbs. (1.38 kg)
