Core Nano
The Q-SYS Core Nano audio, video and control (AV&C) processor extends the applications of the Q-SYS Ecosystem into a wider range of smaller-scale installations across corporate, higher education, healthcare and beyond. Built on the same foundational technology as the rest of the Q-SYS processor portfolio, including the best-in-class Q-SYS Core 110f, Core Nano is designed for applications with lower network channel capacity and/or targeted processing requirements.
Note: For installation and connection instructions, drawings, and other documentation, refer to the Resources section on the Core Nano product page on the QSC website.
Feature | Core Nano |
---|---|
Total Network I/O |
64 x 64 |
Onboard I/O |
N/A |
Software-based Dante Capacity |
8 x 8 included (up to 32 x 32) |
USB Audio Channel Count |
8 x 8 |
AEC Processors |
8 |
Universal Web Conferencing Compatibility |
Yes |
VoIP Instances |
2 |
Onboard AV Bridging (USB) |
Yes |
Full-featured Control Engine |
Yes |
Onboard GPIO |
N/A |
Onboard RS232 Control Ports |
2 |
Q-SYS Peripheral Limit1 |
32 |
Size |
1/2 rack, 1RU |
1. Includes native Q-SYS cameras, I/O, NV, TSCs, paging stations), Extensions and plugins with their “Is Managed” property set to “Yes”. It does not include Streaming I/O, Loudspeakers, Scripts or plugins with their “Is Managed” property set to “No”.
The following Q-SYS Designer components are available for the Core Nano, depending on its Properties.
Standard Components
- Status (Core)
- Serial Port (Core, I/O Frame, I/O-22)
- Loudspeaker Monitor
- HID Keyboard
- HID Media
- HID Conferencing
- USB Input
- USB Output
External USB Audio
USB Video Bridge
USB Audio Bridge

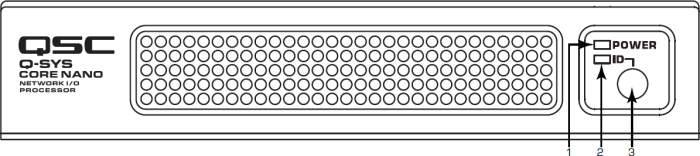

Front Panel
- Power LED – Illuminates blue when the Q-SYS Core Nano is powered on.
- ID LED – Blinks when placed into ID Mode via ID Button or Q-SYS Configurator.
- ID Button – Locates the Q-SYS Core Nano in Q-SYS Designer and Configurator. Pressing the button for 10 seconds resets the Core to its default network settings and host name and also clears the currently running design.

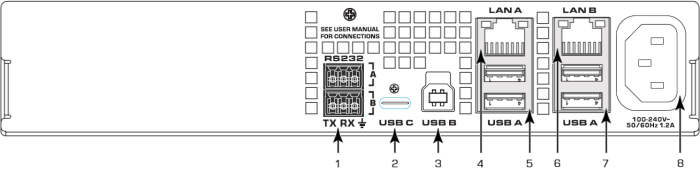

Rear Panel
- RS232 – COM x2. 3-position, 3.5mm connector
- USB Type C – USB 3.1, Host port, DisplayPort, Device port (when USB Type B not in use)
- USB Type B – USB 3.0, dedicated Device port
- LAN A – RJ45, 1000 Mbps, primary, Q-LAN, AES67, Dante, VoIP, WAN streaming, control
- USB Type A – USB 3.0 x2, Host ports
- LAN B – RJ45, 1000 Mbps, backup, Q-LAN, AES67, Dante, VoIP, WAN streaming, control
- USB Type A – USB 3.0 x2, Host ports
- AC mains – IEC 60320, C14 receptacle, universal power in (100V – 240V, 50/60 Hz)
Q-LAN or AES67 Channels |
64x64 |
Core-to-Core Streaming Channels |
64x64 |
Dante Channels |
Default = 8x8 (up to 32x32 upgrade available) |
WAN/Media Streaming Channels |
12x12 |
AEC Processors |
8 |
Softphone Intances |
Up to 2 |
Network Peripherals (max quantity) |
321 |
MTP (Multi-Track Player) |
Default = 16 (up to 32x32 upgrade available Spring 2021) |
Media Drive Storage |
Default = 14GB (128GB, 256GB or 512GB upgrades available Spring 2021) |
1. Includes native Q-SYS cameras, I/O, NV, TSCs, paging stations, Extensions and plugins with their “Is Managed” property set to “Yes”. It does not include Streaming I/O, Loudspeakers, Scripts or plugins with their “Is Managed” property set to “No”.
USB B or USB C (Audio) |
|
Bit Depth |
24-bit |
Channel Quantity |
8x8 |
Sample Rate |
48 kHz |
USB Audio Device Hosting |
Support for standard USB headset, speakerphone on USB type A connection (one device at a time) |
Input |
|
Sample Rate |
48kHz or 16kHz, monaural |
Bit Resolution |
8-bit, 16-bit, 24-bit or 32-bit floating point (IEEE 754) |
Format |
Little-endian, signed or unsigned |
Output |
|
Sample Rate |
48kHz or 16kHz, monaural |
Bit Resolution |
16-bit |
RS232 |
2 ports |
Front Panel LEDs |
POWER (blue LED), ID (green LED) |
Front Panel Control |
ID button (momentary) |
Rear Panel Indicators |
LAN A, LAN B: Link, Speed, Activity (multi-color LEDs) |
Product Dimensions (L x W x H) |
11.28 x 8.66 x 1.72 in (286.6 x 220.0 x 43.6 mm) |
Product Weight |
3.6 lbs. (1.6kg) |
Shipping Weight (Gross Weight) |
4.9 lbs. (2.2kg) |
Power Consumption |
28W typical, 60W maximum |
Cooling |
Active, single variable speed fan |
Operating Temperature Range |
0°C to +50°C |
Storage Temperature Range |
-20°C to +70°C |
Relative Humidity |
5% to 85% RH, non-condensing |
BTU, Heat Load |
95 BTU/Hr. |
FCC 47 CFR Part 15, Subpart B, Class A (USA) |
EAC: TR-CU-004, TR-TC-020 (Eurasia Conformity) |
ICES-003:2016, CSA C22.1 (Canada) |
RCM: AS/NZ S32 (Australia and New Zealand) |
UL and C-UL listed (USA and Canada) |
NOM (Mexico) |
EN55032, EN55035, IEC 61000-3-2, -3 (Europe) |
KN32, KN35, KC60065 (South Korea) |
IEC 60065, IEC 62368-1, CB, CE (Europe) |
RoHS: SJ/T 1164 (China) |
RoHS2: Directive 2011/65/EU, 2017/2102 (Europe) |
SANS 941, LOA (South Africa) |
UKCA (United Kingdom) |
SASO (Saudi Arabia) |
