Call Sync [BETA]

Each Call Sync component supports a connection to a single Call System and multiple device control components, also known as Endpoints. To use Call System component or Endpoint component with Call Sync:

1. Select the component in your design.

2. In Properties, set the Enable Call Sync property to 'Yes'.

3. Wire the Call System or Endpoint pin to the Call Sync component.

Supported Call Systems

• HID Conferencing

• Status/Control (Softphone)

Supported Endpoints

• Control (NL-SB42, NM-T1)

• Lightbar (TSC-G3 Series)

Note: NM-T1 support is pending.

Call System

Connect this input pin to a Call Sync output pin of a supported Call System.

Endpoints

Connect this output pin to the Call Sync input pin of a supported Endpoint.

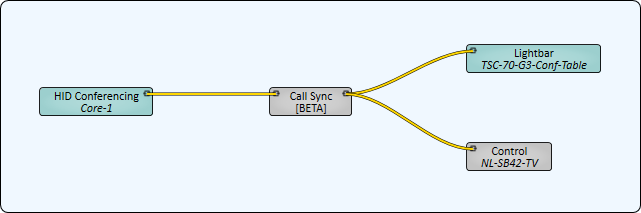

In this example, Call Sync receives call states (mute, ring, etc.) from a HID Conferencing component. The designer can then configure the LED colors and patterns to appear for those states, and then send them to the LED light bars on both a TSC-70-G3 touch panel and NL-SB42 soundbar. The light bars of both devices thus behave the same for call mute, ringing status, etc.

Note: Button Configuration and Proximity Sensor controls are related to the Q-SYS NM-T1 Tabletop Network Microphone. This device will be available in a future release.

Button Configuration

Mute Mode

Alters the microphone Mute button behavior.

• Toggle : (Default) When a Mute button is pressed, it toggles between mute and unmute states. Only toggle is supported when using Call Sync. PTT (Push to Talk) and PTM (Push To Mute) are supported when using the NM-T1 without Call Sync.

Mute Control

This control determines whether audio is muted within the Mic In (NM-T1) component.

• Local: (Default) When set to local, any mute button press on the NM-T1 device or virtual mute buttons will cause the audio to be muted within the NM-T1 Mic In component.

• Remote: When set to Remote and mute buttons are pressed, audio is not muted within the NM-T1 Mic In component. In this mode, the mute state output can be used to control muting in the Q-SYS design.

Mute Buttons

This control enables or disables the four Mute buttons on the NM-T1 device. When set to Disabled, the Mute button backlights on the control ring turn off. The default is Enabled.

Call Button

This control enables or disables the Call button on the NM-T1 device. When set to Disabled, the Call button backlight on the control ring turns off. The default is Disabled.

User Button

This control enables or disables the User button on the NM-T1 device. When set to Disabled, the User button backlight on the control ring turns off. The default is Disabled.

Proximity Sensor

Sensor

This control enables or disables the proximity sensor on the NM-T1 device. The default is Disabled

Fuel Gauge

This control enables or disables the fuel gauge pattern when the proximity sensor is activated on the NM-T1 device. The default is Enabled.

Link to Mute

When enabled, a proximity sensor event will toggle the mute state of the NM-T1 microphone. The default is Enabled.

Call Control

Call Accept

Triggers the active call to be accepted and taken Off Hook.

Call Decline

Triggers the active call to be declined and forced On Hook.

Mute

Toggles the mute state for all Call Sync-connected devices and components.

Off Hook

LED indicates the connected calling system is Off Hook.

Ring

LED indicates the connected calling system is ringing.

LED Configuration

Use this section to configure the Unmute, Mute, Ringing, and Idle states of supported Q-SYS collaboration Endpoints with integrated LEDs (see Supported Endpoints) and how those states are indicated to the user on the LED light bar or ring.

Tip: When connected to a running system, any change to the color, pattern, or speed controls will preview the combination for 5 seconds regardless of the current state of the Endpoint.

Color

For each state, select what color appears in the light bar or light ring:

• <Color Name>: Select from 16 color names in the list.

• Off: The LED will turn off for this state.

• Custom: For greater color capability, wire a Color Picker component to the Color input control pin for each state. See Control Pins.

Pattern

For each state, select a pattern for LED colors to appear: Breathing, Chasing, Chasing w/Tails, Flashing, or Solid (default).

Speed

For each state, select the speed of the selected pattern animation: Slow, Standard, Fast, or None.

User Button Color

Similar to the Color control for call states, you can also configure the color for the NM-T1 User button.

LED Brightness

Select the brightness level of the light bar or ring, from 1 (dimmest) to 10 (brightest). The default is 5. On the NM-T1, this also adjusts the brightness of the Mute, Call, and User button backlights.

Pin Name	Value	String	Position	Pins Available
Call Accept	(trigger)			Input/Output
Call Button	0 1	false true	0 1	Input/Output
Call Decline	(trigger)			Input/Output
Fuel Gauge	0 1	false true	0 1	Input/Output
Idle Color	-	Aquamarine Blue Blue Violet Coral Custom Cyan Green Green Yellow Lime Magenta Off Orange Orchid Pink Red Sky Blue White Yellow	-	Input/Output
Idle Pattern	-	Solid Flashing Breathing Chasing Chasing with Tails	-	Input/Output
Idle RGB	-	#nnnnnn	-	Input/Output
Idle Speed	-	Slow Standard Fast None	-	Input/Output
LED Brightness	1 to 10	1 to 10	0.00 to 1.00	Input/Output
Link to Mute	0 1	false true	0 1	Input/Output
Mute	0 1	unmuted muted	0 1	Input/Output
Mute Buttons	0 1	false true	0 1	Input/Output
Mute Color	-	Aquamarine Blue Blue Violet Coral Custom Cyan Green Green Yellow Lime Magenta Off Orange Orchid Pink Red Sky Blue White Yellow	-	Input/Output
Mute Control	-	Local Remote	-	Input/Output
Mute Mode	-	Toggle	-	Input/Output
Mute Pattern	-	Solid Flashing Breathing Chasing Chasing with Tails	-	Input/Output
Mute RGB	-	#nnnnnn	-	Input/Output
Mute Speed	-	Slow Standard Fast None	-	Input/Output
Mute State	0 1	false true	0 1	Output
Off Hook	0 1	false true	0 1	Output
Ring	0 1	false true	0 1	Output
Ringing Color	-	Aquamarine Blue Blue Violet Coral Custom Cyan Follow Mute Green Green Yellow Lime Magenta Off Orange Orchid Pink Red Sky Blue White Yellow	-	Input/Output
Ringing Pattern	-	Solid Flashing Breathing Chasing Chasing with Tails	-	Input/Output
Ringing RGB	-	#nnnnnn	-	Input/Output
Ringing Speed	-	Slow Standard Fast None	-	Input/Output
Sensor	0 1	false true	0 1	Input/Output
Unmute Color	-	Aquamarine Blue Blue Violet Coral Custom Cyan Green Green Yellow Lime Magenta Off Orange Orchid Pink Red Sky Blue White Yellow	-	Input/Output
Unmute Pattern	-	Solid Flashing Breathing Chasing Chasing with Tails	-	Input/Output
Unmute RGB	-	#nnnnnn	-	Input/Output
Unmute Speed	-	Slow Standard Fast None	-	Input/Output
User Button	0 1	false true	0 1	Input/Output
User Button Color	-	Aquamarine Blue Blue Violet Coral Custom Cyan Green Green Yellow Lime Magenta Off Orange Orchid Pink Red Sky Blue White Yellow	-	Input/Output
User Button RGB	-	#nnnnnn	-	Input/Output
