I/O-Core 24f
The I/O-Core 24f is a versatile audio processing unit designed to operate in both core and peripheral modes. It shares the same hardware as the Core 24f, with the primary difference being its configuration in Peripheral Mode. This mode allows the I/O-Core 24f to handle local input/output connections and interface with Q-LAN components, providing a streamlined and efficient solution for audio processing needs. To switch its configuration to Peripheral Mode, follow the steps in Switching Modes.
Features
- Eight Mic/Line Inputs
- Eight Line outputs
- Eight flex audio channels (software configurable as either a Mic/Line input with phantom power, or a Line Level output)
- Audio-to-USB Bridging for integration with soft-codec applications for host PC
- Control connectivity via GPIO and RS232
Design Components
The following Q-SYS Designer components are available for the I/O-Core 24f, depending on its Properties:
Standard Components
- Status (I/O-Core 24f)
- Mic/Line In (I/O-Core 24f)
- Line Out (I/O-Core 24f)
- Flex In (I/O-Core 24f)
- Flex Out (I/O-Core 24f)
- GPIO In (Core 8 Flex , Core 24f, and I/O-Core 24f)
- GPIO Out (Core 8 Flex , Core 24f, and I/O-Core 24f)
- Serial Port (Core and I/O Devices)
- Loudspeaker Monitor
- HID Keyboard
- HID Media
- HID Conferencing
- USB Input
- USB Output
External USB Audio
USB Video Bridge
USB Audio Bridge
Connections and Callouts

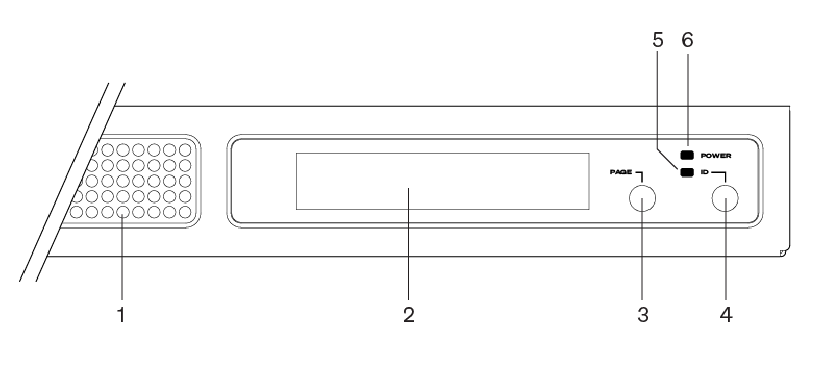

Front Panel
- Air intake vents
- 2x20 character OLED display
- PAGE button — for screen navigation
- ID button — invokes ID feature
- ID LED — illuminates when ID feature is invoked
- POWER on — LED
Rear Panel

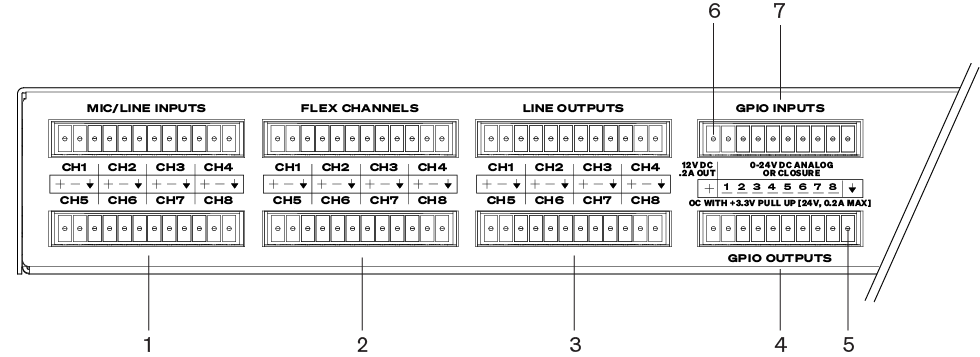

Left Side
- Mic/Line Inputs — (8 channels - orange) Balanced or Unbalanced plus +48V (P48) phantom power compliant with IEC 61938
- Flex Channels — (8 channels - blue) Configurable as Mic/Line Input or Line Output per channel
- Line Outputs — (8 channels - green) Balanced or Unbalanced
- General Purpose Outputs — (8 pins, 2-9) Open collector (24V, 0.2A max), with pullups to 3.3V or TTL output
- Ground Reference — (Pin 10 on each connector)
- 12VDC Source — (Pin 1 on each connector). Provides up to 0.2A per pin
- General Purpose Inputs — (8 pins, 2-9) 0-24VDC analog, potentiometer, TTL digital or contact closure input. GPI 1 may be configured as a word clock input

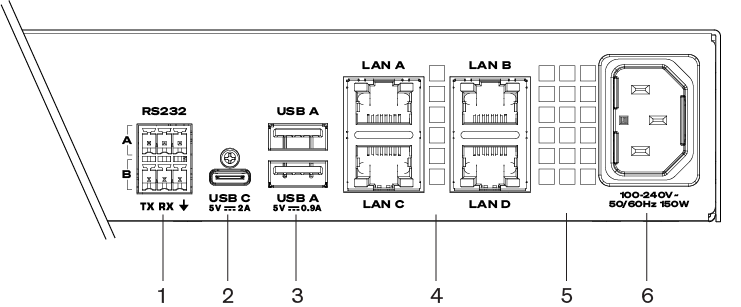

Right Side
- COM ports — (dual) RS232, 3-terminal
- USB C Host — Device or DisplayPort Alt Mode USB 3.1, source up to 2.0A to a Device
- USB A ports — (dual) USB 3.1, source up to 900mA per port
- LAN ports — (quad) Up to 2.5 Gbps per port
- Exhaust vents — (do not block)
- AC mains inlet connector — Supports universal (international) mains
Specifications
For complete product specs, refer to the Specifications Sheet on the I/O-Core 24f product page at qsys.com.
