NC Series Conference Cameras

• Professional quality video conferencing for the Q-SYS AV-to-USB bridging solution

• Distribute video via the Q-LAN network anywhere it is needed

• Add as many network-based NC Series cameras to a design as needed to enable multi-camera functionality when integrating web conferencing platforms

• Distribute video via the Q-LAN network anywhere it is needed

• Simultaneously stream IP feeds and HDMI or SDI (PTZ models only)

• User-configurable resolution and quality for IP streams (up to 1080p), providing greater flexibility for a wide variety of use cases

• Comprehensive management via Q-SYS Designer Software and Q-SYS Reflect

• Complete camera imaging controls, including white balance, focus and exposure

• Image Rotation control inverts the video when the camera is mounted upside down. For PTZ cameras, the optional ceiling mount accessory is the PTZ-CMB1

• Power over Ethernet

• Local 12 V connection for PTZ models (power supply not included)

• PTZ models include PTZ-WMB1 wall mount bracket for simple installation; ePTZ model has built-in mounting hardware

• Includes lens cover for privacy (NC-110 only)

The following components are available for the NC-12x80, NC-20x60, and NC-110:

Standard Components

• Status/Control (Cameras)

Related Components

• USB Video Bridge
• Mediacast Router

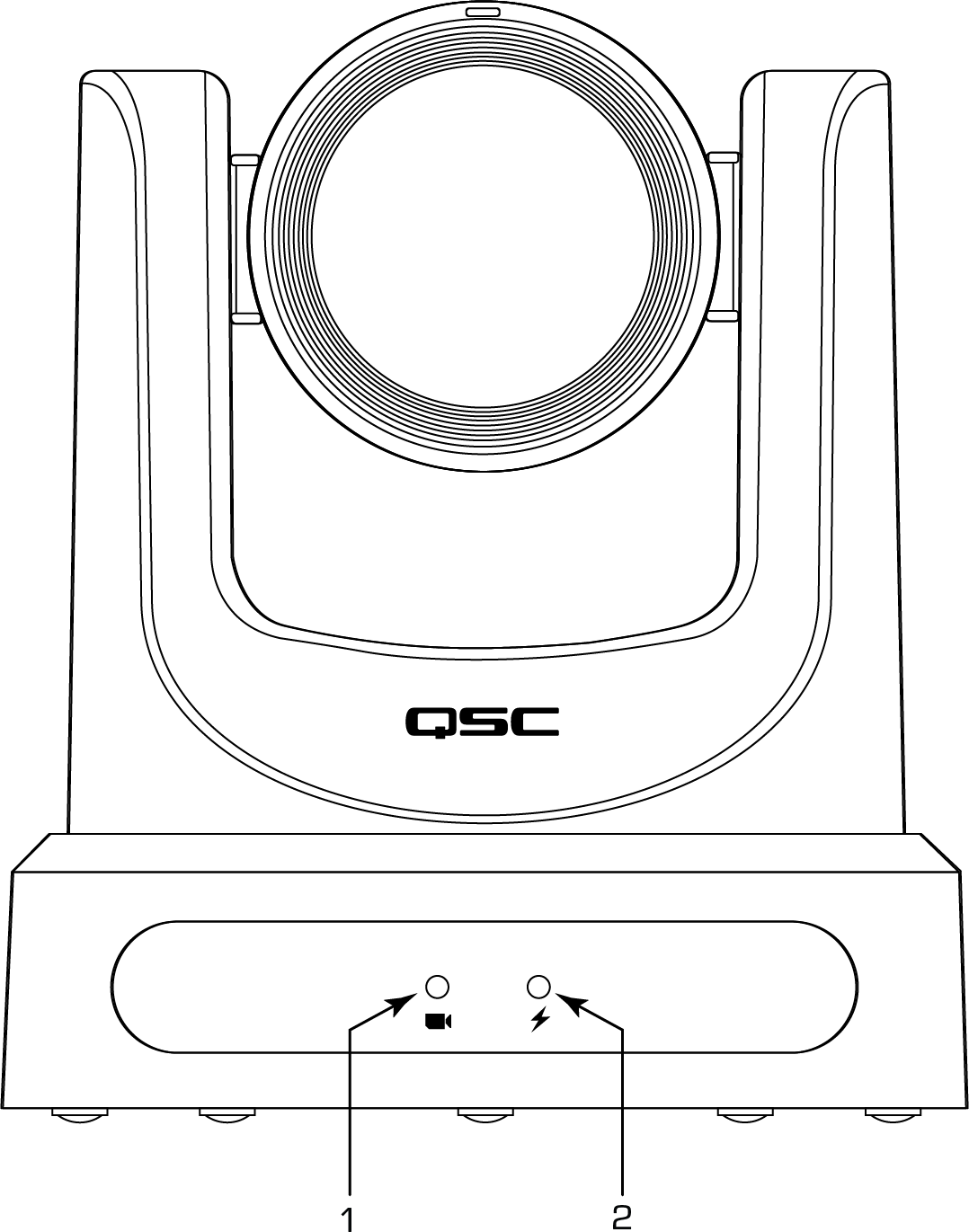

Front Panel – NC-12x80 and NC-20x60 PTZ

1. Status LED (Green)

   • Off indicates the camera is in standby mode; network streams are off.

   • On indicates the camera is streaming video over the network.

   • Blinking indicates the ID mode is on.

2. Power LED (Blue)

   • On indicates the camera has power applied.

   • Off indicates the camera has no power applied.

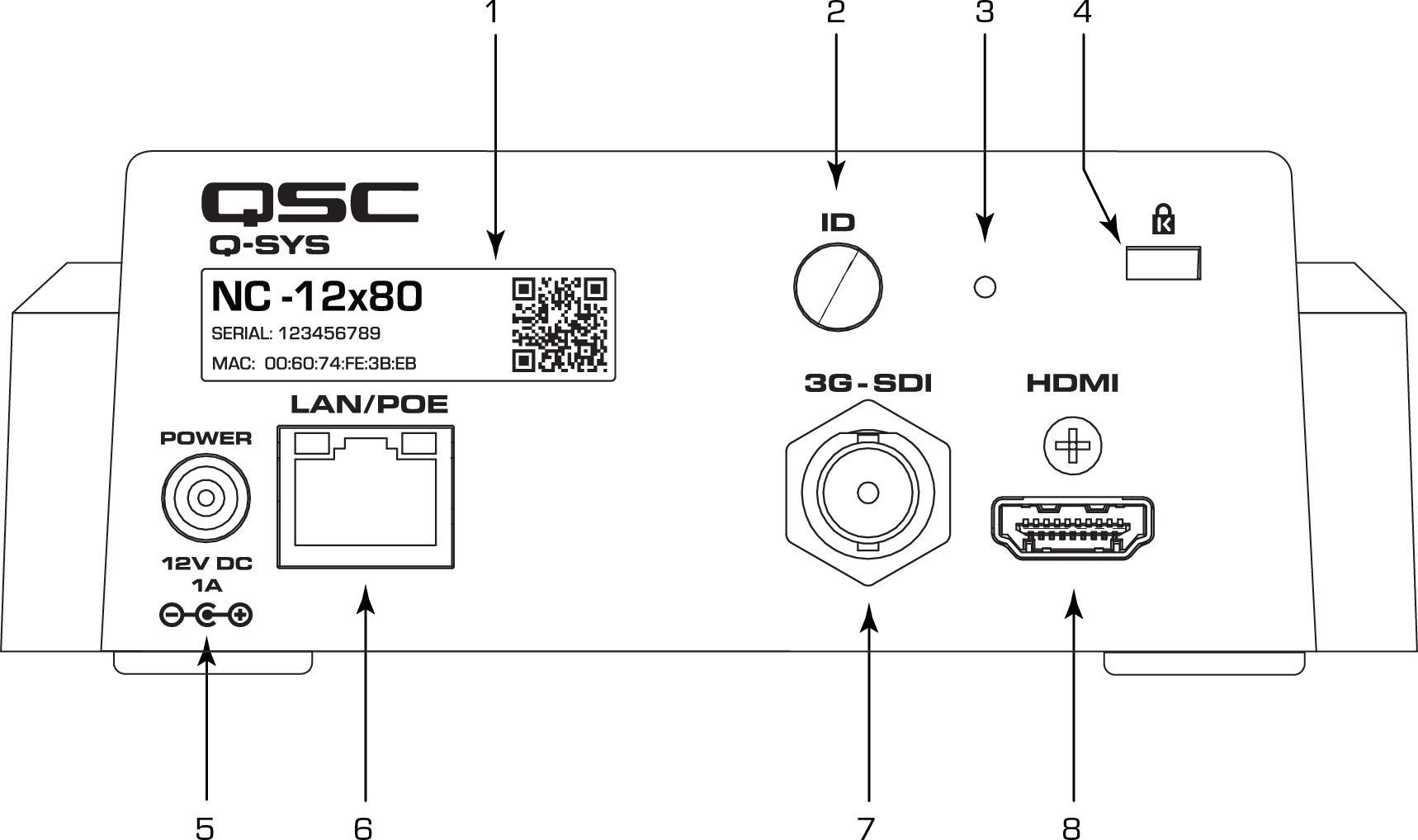

Rear Panel – NC-12x80 and NC-20x60 PTZ

1. Product Label

   • Identifies product model: NC-12x80 or NC-20x60

   • Identifies the product serial number

   • Identifies the product MAC address

2. ID Button: Press to identify this product in Q-SYS Designer Software and Q-SYS Configurator. The green STATUS LED on the front panel blinks when in ID mode. Press again to turn off.

3. Factory Reset pin-hole: Use a paperclip or similarly sized object to insert. Press and hold the reset button for 5 seconds. This resets all parameters to the factory defaults.

4. Kensington™ Lock Slot: for use with a security cable (not supplied).

5. DC 12 V: Connect an external power supply (not included). Supply must be rated at 12VDC 1A, EIAJ-04, center pin positive, outside barrel negative. Use only a class 2/LPS power supply.

6. LAN/PoE: RJ-45 connector for Q-SYS Gigabit Ethernet and Power over Ethernet. Cat5e cabling or better required.

7. 3G-SDI: 3G-SDI output via various video formats. Video formats can be changed via Q-SYS Designer Software or a Q-SYS User Control Interface (UCI). Maximum video format is 1080p60.

8. HDMI: HDMI® 1.4b output via various video formats. Video formats can be changed via Q-SYS Designer Software or a Q-SYS UCI. Maximum video format is 4K30.

   Note: NC Series PTZ cameras support the usage of either HDMI or SDI, but not both simultaneously.

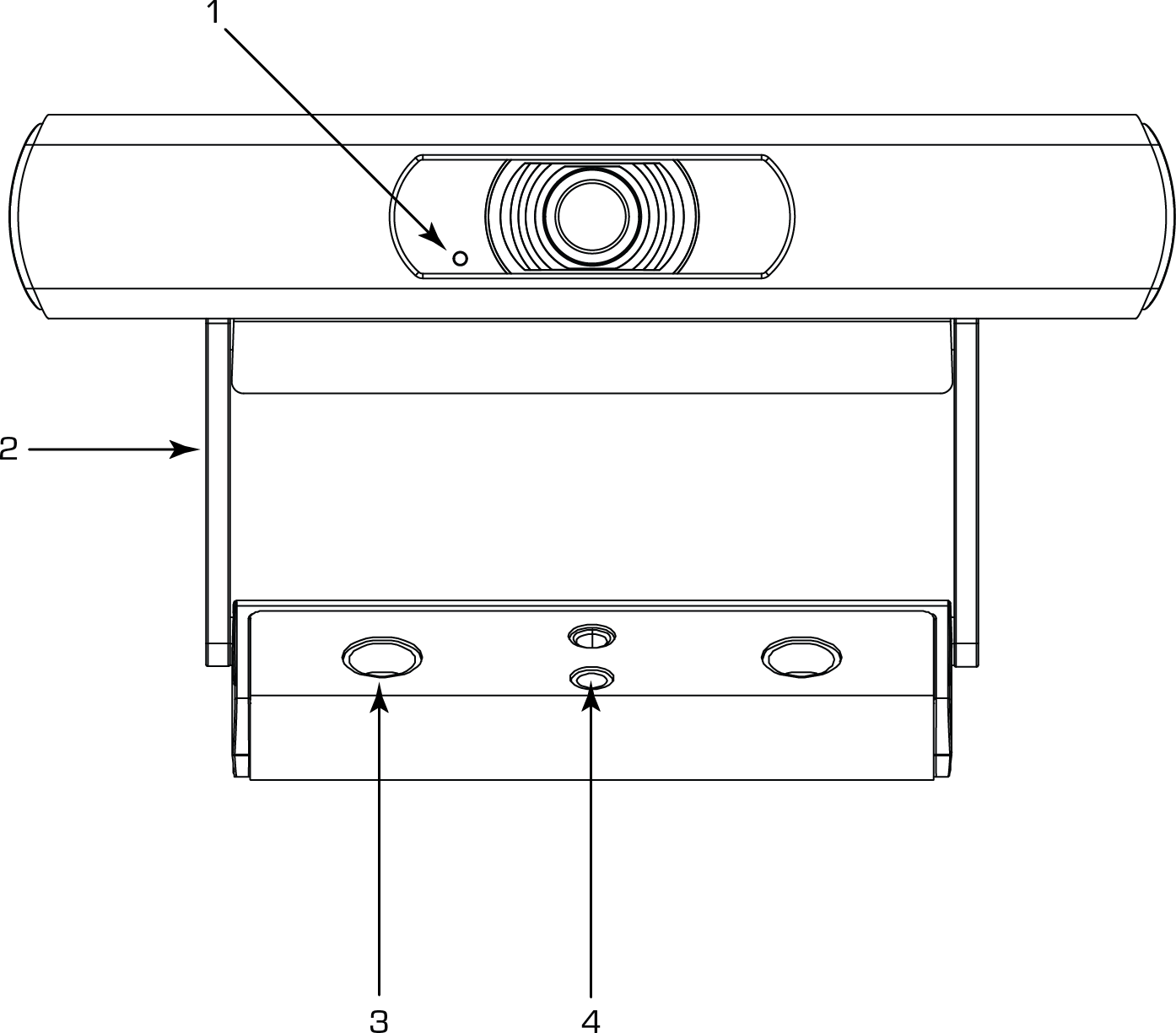

Front Panel (NC-110 ePTZ)

1. LED: The NC-110 features a single power and status LED that provides feedback on device state.

   • Blinking Green: Power is on and camera is in ID Mode

   • Solid Blue: Power is on and the camera is not streaming

   • Solid Green: Power is on and the camera is actively streaming

   • Off: Camera is in Privacy Mode (if the camera is powered) or no power is detected

2. Included Camera Mount: This product can be configured for monitor-mounting or surface-mounting.

3. Surface Mounting Screw Holes

4. Universal Mounting Adapter: This can be used when connecting the NC-110 to a different mount.

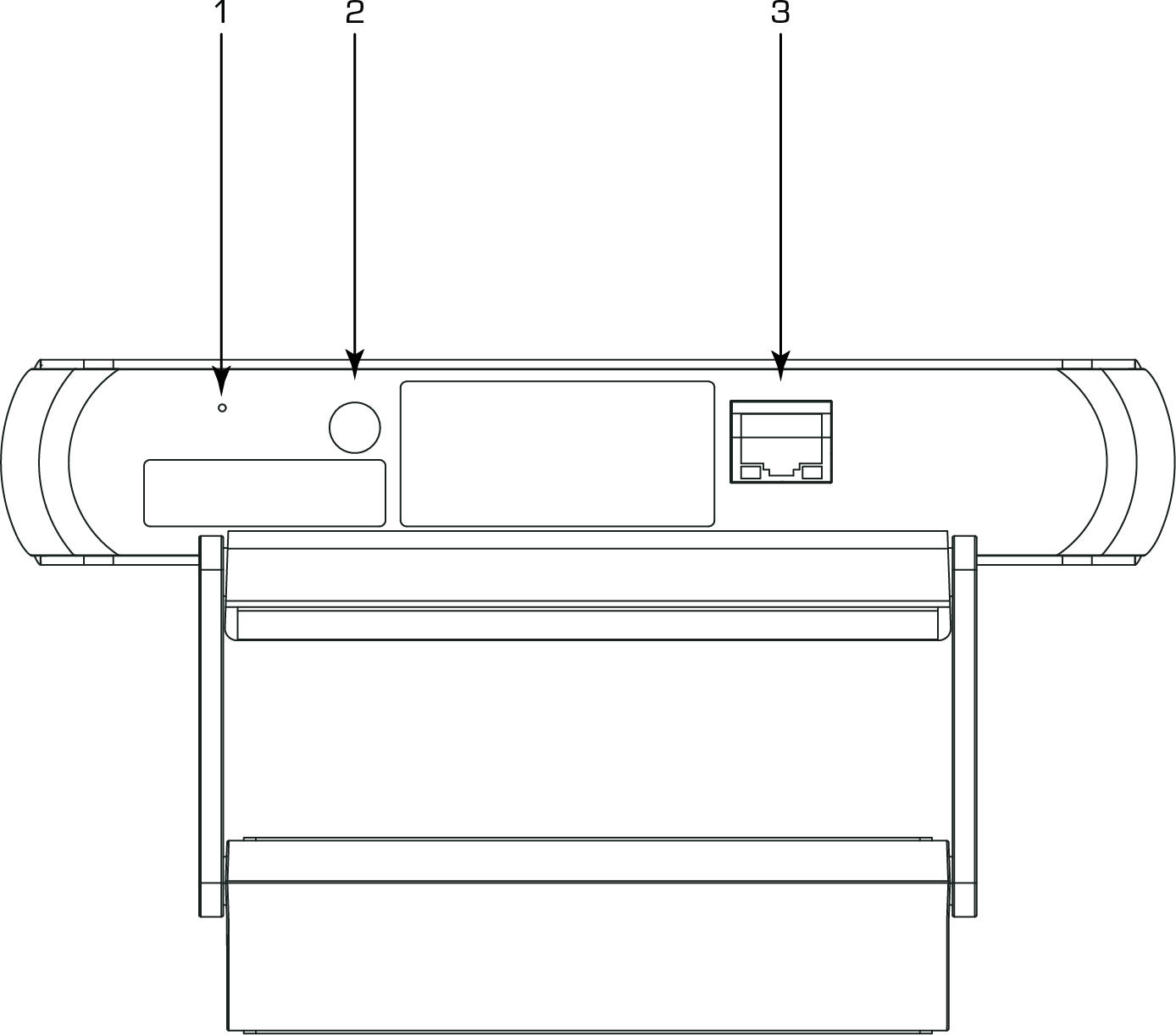

Rear Panel (NC-110 ePTZ)

1. Factory Reset Pinhole: Use a paperclip or similarly sized object to insert. Press and hold the reset button for 5 seconds. This resets all parameters to the factory defaults.

2. ID Button: Press to identify this product in Q-SYS Designer and Configurator. The STATUS LED on the front panel blinks green when in ID mode. Press again to turn off.

3. LAN/PoE: RJ-45 connector for Q-SYS Gigabit Ethernet and Power over Ethernet. Cat5e cabling or better required.

	NC-12x80	NC-20x60	NC-110
System Details
Description	Network PTZ conference camera		Network EPTZ conference camera
Image Sensor	1/2.8" low-noise CMOS	1/1.8" low-noise CMOS	1/2.8" low-noise CMOS
Lens characteristics (wide to tele)	12x optical zoom f=3.47 to 41.65 mm F1.84 to F3.72	20x optical zoom f=6.25 to 125 mm F1.58 to F3.95	Fixed focus Lens 8x max zoom, 2x lossless f=1.86 mm Supports EPTZ
System scanning mode	Progressive
Signal-to-noise ratio	≥ 55 dB
Horizontal rotation range	± 170°		Supports EPTZ
Vertical rotation range	-30° to +90°		Supports EPTZ
Pan speed range	1.7° to 100°/s
Tilt speed range	1.7° to 69.9°/s
Horizontal and vertical flip	Supported (enables ceiling-mounted installations)
Camera Imaging
Minimum illumination	0.5 Lux @ (F1.8, AGC ON)
Shutter	1/30s to 1/1000s
White balance	Auto, indoor, outdoor, one push, manual, specified color temperature
Digital noise reduction	3D digital noise reduction
Supported Video Formats
Supported bridging formats	Core Nano, Core 8 Flex, NV-32-H (Core Capable), I/O-USB Bridge: MJPEG & YUY2 Core 110f: YUY2 (360p max resolution on USB 2.0, 1080p30 max resolution on USB 3.0
Supported bridging resolutions	1080p: 30, 15 fps | 720p: 30, 15 fps | 360p: 30, 15 fps | 180p: 30, 15 fps
IP stream resolutions (preview window)	H.264 @ 360p, 270p or 180p
HDMI output (YCbCr 4:2:2 8-bit)	2160p @ 25, 29.97, 30 fps 1080p @ 25, 29.97, 30, 50, 59.94, 60 fps 1080i @ 50, 59.94, 60 fps 720p @ 30, 50, 59.94, 60 fps		No HDMI output
3G-SDI output	1080p @ 25, 29.97, 30, 50, 59.94, 60 fps 1080i @ 50, 59.94, 60 fps 720p @ 50, 59.94, 60 fps		No SDI output
Power
DC power input	12 V (±20%), 12 W, JEITA connector		N/A
Power over Ethernet (PoE)	PoE Type 1, Class 3		PoE Type 1, Class 2
Power consumption	12.95 W max		6.4 W max
General Specifications
Network interface	1000BaseT (IEEE 802.3ab) Ethernet interface
Operating temperature	0°C - 40°C
Storage temperature	-40°C - 60°C
Size	6.7 x 5.6 x 6.5 in (169 x 142 x 164 mm)		7.6 x 2.2 x 3.8 in (194.5 x 54.7 x 95.7 mm), with bracket
Net weight	3.5 lbs (1.6 kg)		0.9 lbs (0.4 kg), with bracket
