Core 110f

With an abundance of acoustic echo cancellation (AEC), raw processing power and networked audio channel count, the Q-SYS Core 110f offers the best cost-to performance ratio of any in-room processing solution available. This smaller core is ideal for acoustic echo canceling and sound reinforcement in small to large meeting or multipurpose rooms, sound reinforcement in performance venues such as house of worship and theater, background music systems, and wide area paging in airports, convention centers, and hospitals.

Note: This topic provides an overview of the Core 110f. For installation and connection instructions, see the Hardware User Guide online.

Hardware Attributes

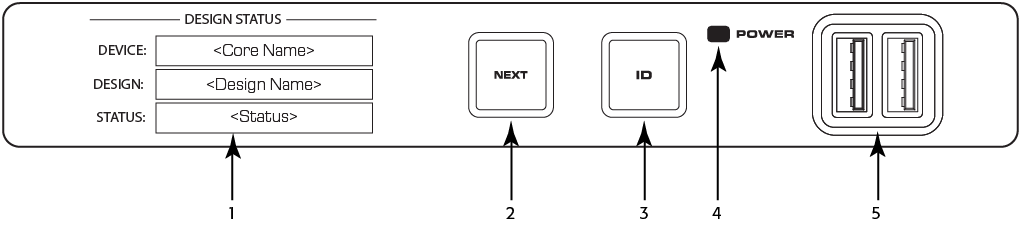

Front Panel

OLED Display – displays information about the core's settings and status.
Next button – cycles through the information pages
ID button – locates the Core in Q-SYS Designer GUI and Configurator
Power LED – illuminates blue when the Core is on
USB Type A Host connectors (2)

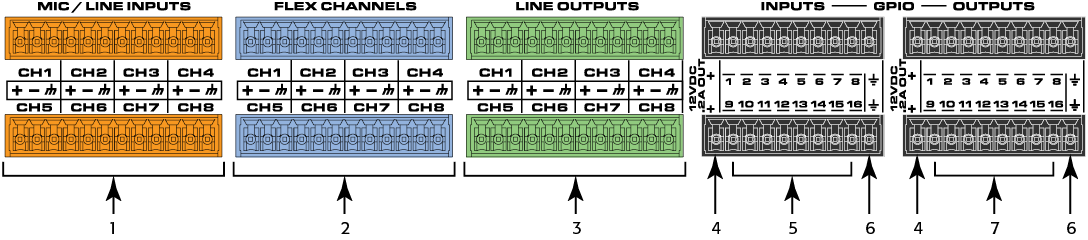

Rear Panel — Left Side

All audio inputs and outputs use one 3-position, 3.5mm Euro connector for each channel. GPIO uses one 10-position 3.5mm Euro connector for each row. Configure all inputs and outputs in Q-SYS Designer.

Mic/Line Inputs – eight channels, balanced or unbalanced, phantom power – orange
Flex Channels – eight user-configurable input/output channels, balanced or unbalanced, phantom power on inputs – blue
Mic/Line Outputs – eight channels, balanced or unbalanced - green

The following connections use the black Euro plug.

12VDC, 0.2A Outputs + uses connector pins 1 and 11 (not numbered)
General-purpose Inputs – 16 inputs, 0-24V analog input, or contact closure (Pins labeled 1–16 equal pins 1–16 in the Q-SYS Designer GPIO Input component)
Earth ground – uses pins 10 and 20 (not numbered)
General-purpose Outputs – 16 outputs, open collector (24V, 0.2A maximum) with pull up to +3.3V (Pins labeled 1–16 equal pins 1–16 in the Q-SYS Designer GPIO Output component)

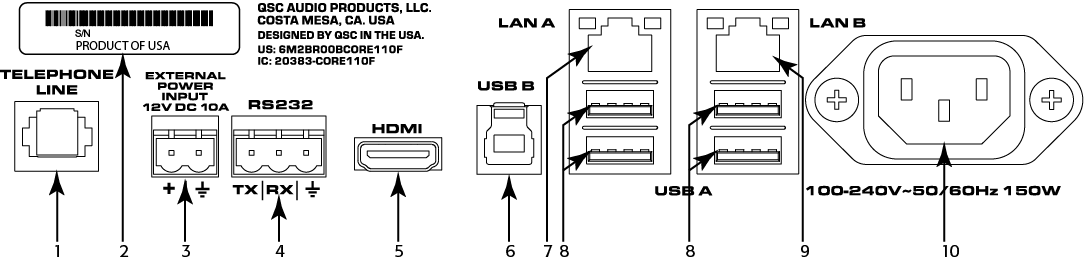

Rear Panel — Right Side

Telephone Line – RJ11 (6P2C)
Serial Number of the Core 110
External Power Input – Auxiliary power, 12VDC, 10A, 2-pin, 5 mm Euro connector.
RS232 – Transmit and receive, 3-pin, 5 mm, Euro connector
HDMI – for future use
USB Type B Device connector
LAN A – Q-LAN, control, VoIP, WAN streaming, AES67 etc., RJ45
USB Type A Host connectors (4) for future use
LAN-B – Redundancy, control, VoIP, etc.
A/C Power Input – IEC connector, 100-240V ~ 50-60 Hz, 150W, universal power supply

OLED Screens

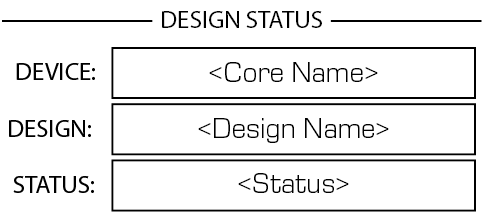

Design Status

Device – The name of the Core as defined in Q-SYS Designer.
Design – The name of the currently running design.
Status –
- OK – Audio is good, hardware is good.
- Compromised – Audio is good but a redundancy mechanism is active (one LAN down but the other is still up) or a non-fatal hardware problem exists (fans too slow, temperature higher than expected, etc.)
- Fault – Audio is not passing, or hardware is malfunctioning or mis-configured
- Missing – A piece of hardware, defined in the design, has not been discovered. Audio is not passing through that piece of hardware.
- Initializing – Starting the firmware, configuration update, and the design. Audio is obviously bad.
- Not Present – A virtual component in the design, that is designated as Dynamically Paired, and Not Required, has no hardware assigned to it.

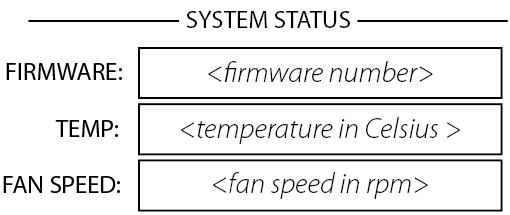

System Status

Firmware – A three-section number identifying the major release, minor release, and maintenance release. For example, 5.0.06.
Temp – The current chassis temperature of the Core.
- Compromised threshold = 60° C
- Fault threshold = 70° C
Fan Speed – This number varies with the temperature.

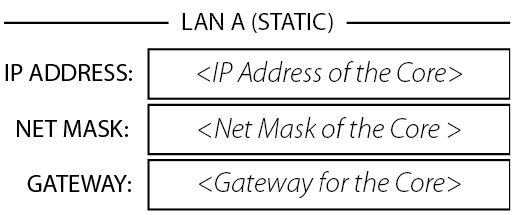

LAN A

Static or Auto – Displays next to LAN A, indicates if the Core's IP Address is Static or Automatic.
IP Address – The IP Address assigned to the Core's LAN A. LAN A is the primary Q-LAN connection to the Core, and is required.
Net Mask – The Net Mask assigned to the Core.
Gateway – The Gateway assigned to the Core.

Note: You can edit this information in Q-SYS Core Manager.

LAN B

LAN B is used for redundancy, and is not required. The information is the same as LAN A.

Input / Flex In Channels Status

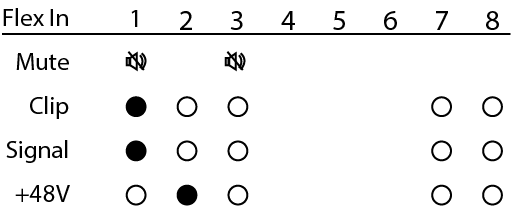

The Input and Flex Input screens show the Mute, Clip, Signal, and +48V (phantom power) for the eight Mic/Line input channels.

Mute – Displays a "muted loudspeaker" when the channel is muted.
Clip – Displays a solid circle under the channel having an input signal that is overdriving the associated channel input.
Signal – Displays a solid circle when there is a signal present on the associated channel.
+48V – Displays a solid circle when the phantom power is turned on for the associated channel.

Note: If the Flex channel is set to Output, there is no information for that channel on the Flex In screen.

Output / Flex Out Channels Status

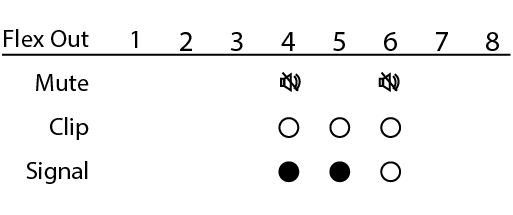

The Output and Flex Output screens show the Mute, Clip, and Signal, for the eight Mic/Line output channels.

Mute – Displays a "muted loudspeaker" when the channel is muted.
Clip – Displays a solid circle under the channel having an output signal over driving the associated channel output.
Signal – Displays a solid circle when there is a signal present on the associated channel.

Note: If a Flex channel is set to Input, there is no information shown under the same channel on the Flex Out screen.

Specifications

Input Frequency Response 20 Hz to 20 kHz @ +21 dBu	+0.05 dB/-0.5 dB
Input THD+N @ 1 kHz
@ +21 dBu Sensitivity and @ +21 dBu input	< 0.1%
@ +21 dBu Sensitivity and @ +10 dBu input	< 0.0015%
@ +10 dBu Sensitivity and @ +8 dBu input	< 0.001%
@ -10 dBu Sensitivity and @ -10.5 dBu input	< 0.001%
@ -39 dBu Sensitivity and @ -39.5 dBu input	< 0.007%
Input to Input Crosstalk @1 kHz @ +21 dBu sensitivity @ +10 dBu sensitivity @ -10 dBu sensitivity @ -39 dBu sensitivity	110 dB Typical, 90 dB Max 105 dB Typical, 90 dB Max 100 dB Typical, 90 dB Max 75 dB Typical
Input Dynamic Range
@ +21 dBu Sensitivity	> 109.5 dB
@ +10 dBu Sensitivity	> 106.4 dB
@ -10 dBu Sensitivity	> 104.6 dB
Input Common Mode Noise Rejection
@ +21 dBu Sensitivity	< 51, 20 Hz – 3 kHz < 43, 20 Hz – 10 kHz < 36, 20 Hz – 20 kHz
@ +10 dBu Sensitivity	< 57, 20 Hz – 3 kHz < 47, 20 Hz – 10 kHz < 41, 20 Hz – 20 kHz
@ -10 dBu Sensitivity	< 67, 20 Hz – 3 kHz < 58, 20 Hz – 10 kHz < 53, 20 Hz - 20 kHz
@ -39 dBu Sensitivity	< 60, 20 Hz – 3 kHz < 54, 20 Hz – 10 kHz < 50, 20 Hz – 20 kHz
Input Impedance (balanced)	7.2k Ω Nominal
Input Sensitivity Range (1 dB Steps)	-39 dBu min to +21 dBu max
Output Frequency Response 20 Hz to 20 kHz @ all settings	+0.2/-0.5 dB
Output THD	0.005% Typical, +21dBu Max Output Level
EIN (no weighting, 20 Hz to 20 kHz)	< -121 dB
Output Crosstalk @ 1 kHz	> 100 dB Typical, 90 dB max
Output Dynamic Range	> 108 dB
Output Impedance (balanced)	332 Ω
Output Level Range (1 dB Steps)	-39 dBu min to +21 dBu max
Q-LAN Channels	128
AEC Channels Q-SYS Core 110f Q-SYS Core 110c	16 4
Core-to-Core Streaming Channels	128
MTP	Default = 16, With optional MD-110 SSD and MTP-32 = 32
USB B (Audio)
Bit Depth	Selectable 16-bit, 24-bit
Number of Channels	up to 16x16
Sample Rate	48 kHz
Phantom Power	+48VDC, 10mA per input max
Sampling Rate	48 kHz
Power Consumption	60 watts, typical. 120 watts max
A/D – D/A Converters	24-bit
BTU / Heat load	205 BTU/Hour
Device Dimensions (HxWxD)	1.7" (44 mm) x 18.9" (481 mm) x 11.3" (288 mm) Note: Depth without AC connector is 11.1" (284 mm)
Shipping Dimensions (HxWxD)	6" (152mm) x 23" (584mm) x 14" (356mm)
Device Weight	10.8 lb (4.9kg)
Shipping Weight	11.5 lb (5.2 kg)
Compliance	FCC Part 68 / TIA-968-B (USA) JATE (Japan) Industry Canada CS-03 (Canada) ES203 021, CE, RoHS (Europe) UL and C-UL listed (USA & Canada) AS/ACIF S002 and RCM (Australia) PTC200 (New Zealand) AC (Eurasian Customs Union) ANATEL Resolution 473 (Brazil) NOM-151-SCTI (Mexico) PSTN01 (Taiwan)

To see a list of related documentation, visit the Core 110f product page on the QSC website.

Local I/O Channels	24 (8 analog in, 8 analog out, 8 analog flex in/out), 16x16 USB audio
Network Audio Channels	128 x 128
AEC Processors	16
Multitrack Audio Players	16 (upgradable to 32)
Local I/O Card Capacity	N/A (Built-in I/O on this model)
VoIP Instances	4
Maximum NV-32-H Network Video Endpoints	32
