Monitoring Proxy

• Monitoring Proxy allows a 3rd party device to become an Inventory item in your design. When you connect Monitoring Proxy to an upstream Status control pin, that status is then viewable locally in Core Manager and remotely in Enterprise Manager.
• Monitoring Proxy also allows you to submit log entries for the 3rd party device to the Core's Event Log. Events from Monitoring Proxy are then viewable in the Enterprise Manager Event Log.

Tip: Log output from scripting components (for example, Block Controller) and entries submitted to the Event Log from the Event Logger component do not appear in Enterprise Manager Event Log. Use Monitoring Proxy to allow logging from these components in Enterprise Manager.

Input Pins

Status Input

By default, Monitoring Proxy includes a single input control pin. Wire this pin to an upstream component's Status control pin. The Status Input pin receives the complete, extended status from the upstream component and passes it to Status > Inventory list in Core Manager and Enterprise Manager. For more information, see Controls.

Output Pins

This component does not have standard output pins.

To configure Monitoring Proxy to send the status of a 3rd party device to the Status > Inventory list in Core Manager and Enterprise Manager:

1. From the Inventory > Peripherals menu, select Monitoring Proxy.
2. Define your 3rd party device's Name (for example, "Conf-Room-TV"), Manufacturer (required), Model (required), and Type. See Properties.
3. Drag the Monitoring Proxy's Status/Control component into the schematic.
4. Wire the Status Input pin to the Status pin of an upstream component. For example, this could be an upstream Monitor category component (Ping, SNMP Query) or a script you have written for this 3rd party device.
5. Press F5 to save your design to the Core and run it.
6. Double-click the Monitoring Proxy component to open its control panel. The Status field indicates your 3rd party device status, which is now being sent to the Status > Inventory list in Core Manager and, with a subscription, Enterprise Manager.

Tip: You can also submit custom log entries to the Core's Event Log. To learn how, see Schematic Examples.

Monitor a 3rd Party Device's Network Connectivity

In this example, Monitoring Proxy is used to check the status of a network-connected TV. A Ping component is configured to check the TV's network connectivity every second. If the ping is successful, the status is reported as OK. If the ping fails, a Fault is generated, indicating that the device may be having an issue. The device status is sent to the Core's Status > Inventory list, which is easily viewed locally in Core Manager and remotely in Enterprise Manager.

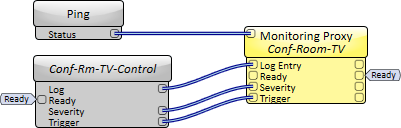

Monitor Device Status and Send Log Entries

In this example, a Ping component monitors the TV's network connectivity (as with the previous example), and a Block Controller component is configured to control the TV and write log entries to the Event Log. The following Monitoring Proxy control pins are used:

• Log Entry (Input): Receives the log entry text from the script output.
• Severity (Input): Receives the severity text from the script output. See Controls for valid severity strings.
• Trigger (Input): Receives the trigger signal from the script to submit the log entry to the Event Log.
• Ready (Output): The Ready LED determines if the Monitoring Proxy can receive a log entry. This is fed back into the script as a condition of triggering a log event only when the LED's value is '1' (string is 'true'). See Controls to understand what determines the Ready state.

Name

When you trigger an event, this is the text string that appears in the Core's Event Log under the Source column. This name also appears in the Inventory list on the Status page. The Name may contain ASCII letters 'a' through 'z' (case-insensitive), the digits '0' through '9', and the hyphen. Names cannot begin or end with a hyphen. No other symbols, punctuation characters, or blank spaces are permitted.

Location

User-defined name that groups the component with other components in the same physical location, or in the same organizational scheme.

Is Required

When set to 'Yes' (default), and the device is not found on the network, the device is reported as 'Missing', which is an error condition. When set to 'No', and the device is not found on the network, the device is reported as 'Not Present', which is not an error condition.

Manufacturer

This is a required field. Specify the 3rd party device manufacturer. (This will become visible in the Status > Inventory list in a future release.)

Model

This is a required field. Specify the model of the 3rd party device, which is then shown in the Status > Inventory list for identification purposes.

Type

From the drop-down menu, select a hardware category that best fits the 3rd party device. If none of the categories is suitable, select 'Other', and then specify your own category. The Type you choose is shown in the Status > Inventory list for identification. For more information, see Status.

Other

This property only appears when you have selected "Other" for the Type. Specify your own text to describe the 3rd party device's category.

Status

This is the complete text string status of the wired, upstream component. It includes at least one of the seven basic statuses, plus any extended details, if applicable.

Component status is conveyed with the Status LED and Status box, which uses both color and text to indicate the current condition:

• OK: The device is functioning normally.
• Initializing: The device is in the process of a firmware or configuration update, or the design is starting.
• Compromised: The device is functioning, but a non-fatal problem exists.
• Missing: The device cannot be discovered.
• Fault: The device is malfunctioning or is not properly configured.
• Unknown: This status appears during a Core reboot (for example, during a firmware update), or when a design is being pushed to the Core and before it has started running.
• Not Present: If applicable to the device, this status appears when the device is not connected to the network and its Is Required component property is set to 'No'. This status also appears if the device component's Dynamically Paired property is set to 'Yes', pairing has not been assigned in Core Manager, and the device component's Is Required property is set to 'Yes'. See Dynamic Pairing.

Log Entry

When you press the Trigger button, this is the text string that is placed in the Core's event log under the Message column.

Severity

When you press the Trigger button, this is the severity level that is placed in the Core's event log for the event – normal, error, or warning. Note that "default" equates to "Normal" severity. For more information on statuses, see Status.

Trigger

Click to submit the Log Entry, including its defined Severity.

Ready

The LED glows green when the Monitoring Proxy is ready to receive a log entry. No more than four log entries per second per component are allowed. When this limit is reached, the Ready LED turns off until the next one-second period.

Tip: If you are using a script to trigger log events, expose the Ready control pin and wire it to your script to validate that the Monitoring Proxy can accept additional log entries.

Pin Name	Value	String	Position	Pins Available
Log Entry	(text)			Input / Output
Ready	0 1	false true	0 1	Input / Output
Severity	-	default error warning	-	Input / Output
Status	0 1 2 3 4 5	OK (Green) Compromised (Orange) Fault (Red) Not Present (Gray) Missing (Red) Initializing (Blue)	-	Output
Trigger	(trigger)			Input / Output
