NV-32-H Network Video Endpoint

The Q-SYS NV-32-H is a network video endpoint native to the Q-SYS Ecosystem, serving as a multi-stream, software-configurable HDMI encoder/decoder that enables network-based video distribution. Optimized for the meeting room, the NV-32-H delivers the right balance of high quality (supporting resolutions up to 4K60 4:4:4), low-latency and network-efficient video distribution across a standard gigabit infrastructure.

Note: This topic provides an overview of the NV-32-H network video endpoint. For installation instructions, see the Hardware User Manual online.

Hardware Attributes

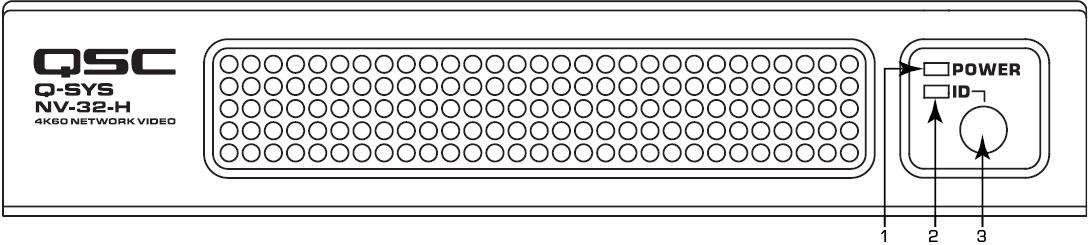

Front Panel

Power LED – illuminates blue when the Q-SYS NV-32-H is powered on
ID LED – LED blinks when placed into ID Mode via ID Button or Q-SYS Configurator Software
ID Button – Locates the Q-SYS NV-32-H in Q-SYS Designer GUI and Configurator

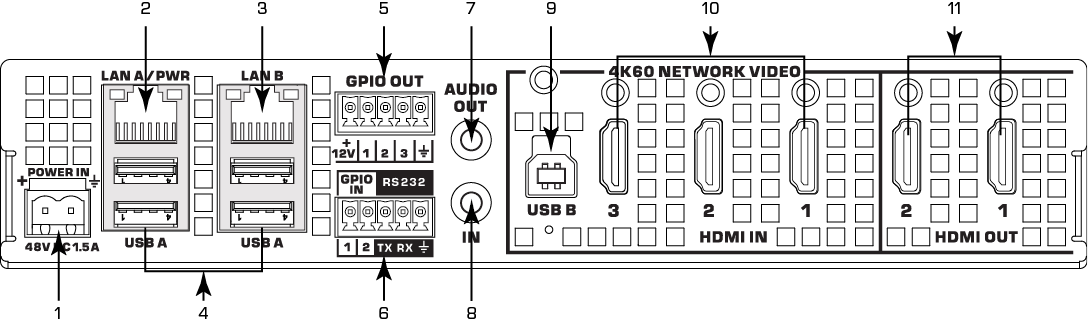

Rear Panel

External Power Input 48 VDC 1.5 A – Auxiliary power, 48 VDC, 1.5A, 2-pin Euro connector
LAN A/ PoE ++ – connection for Q-LAN network, 802.3bt Type 4 power, RJ-45 connector
LAN B – RJ-45 connector, not active at initial release
USB Type A – USB type A host connectors (blue connector is for USB 3.0 connection).
GPIO Out
- 12 VDC Output – 12 V, 0.2 A output used for GPIO signals.
- GPIO Outputs – 3 outputs, open collector (24 V, 0.2 A maximum) with pull up to +3.3 V, (pins 1-3 equal pins 1-3 in the Q-SYS Designer GPIO Output component.
- Ground – Use this ground reference for 12 VDC and GPIO outputs.
GPIO Inputs / RS-232
- GPIO Inputs – 2 inputs, 0-24 V analog input, or contact closure, pins 1-2 equal pins 1-2 in the Q-SYS Designer GPIO Input component).
- RS-232 – Transmit and Receive
- Ground – Use this ground reference for GPIO inputs and RS-232.
Analog Audio Output – 3.5 mm connector unbalanced stereo line output
Analog Audio Input – 3.5 mm connector unbalanced stereo mic/line input
USB B – USB Type B Device connector for web conference integration
HDMI Inputs – H1DMI 2.0 Input with support for HDCP 2.2 and HDCP 1.4
HDMI Output – HDMI 2.0 Output with support for HDCP 2.2 and HDCP 1.4

Control

RS-232

Three-pin Euro terminal connection to control third-party devices with Q-SYS Control, user configurable.

GPIO

Three inputs and two outputs for control of third-party devices via Q-SYS Control, user configurable.

Bridging

In addition to its video distribution capabilities, the USB Type-B connection on the NV-32-H acts as an endpoint for the Q-SYS Web Conferencing solution, similar to the Q-SYS Core 110f processor and Q-SYS I/O-USB Bridge. This mode is available when configured as an encoder or decoder. The NV-32-H emulates a webcam video driver (for video streams from the Q-SYS PTZ-IP conference cameras), AEC speakerphone audio driver and multi-channel soundcard driver over a single, driverless USB connection.

Audio

HDMI Audio Input

Each HDMI input is able to receive up to eight channels of PCM audio, which are routable within Q-SYS Designer Software.

HDMI Audio Output

Each HDMI output has the ability to output up to eight channels of PCM audio, making each HDMI output a full-featured Q-SYS audio destination for source audio content, or any other Q-SYS audio feature such as paging, audio playback, etc.

Analog Audio Input

Mic/line input on a 3.5 mm TRS connector, routable within Q-SYS Designer Software, for direct connection of microphones or audio players.

Analog Audio Output

Line output on a 3.5 mm TRS connector, routable within Q-SYS Designer Software, for direct connection of QSC non-networked amplifiers, external speakers or audio recorders.

Q-SYS Shift™ Adaptive Video Compression Codec

Modes

Multicast and unicast

Bitrates

10 Mbps – 800 Mbps

Streaming Protocol

RTP

Content Protection

HDCP 2.2 compliant, AES-128 encryption for all audio and video signals between encoders and decoders.

Supported Video Formats

Resolution	Frame Rate (Hz)	Chroma Sampling Level
3840 x 2160 (4K UHD)	60, 59.94, 50, 30, 29.97, 25, 24	4:4:4
2560 x 1600	60	4:4:4
1920 x 1200	60	4:4:4
1920 x 1080 (1080p)	60, 59.94, 50, 30, 29.97, 25, 24	4:4:4
1280 x 720 (720p)	60, 59.94, 50, 30, 29.97, 25, 24	4:4:4
640 x 480	60	4:4:4

* All video formats are progressive.

Scaler

Each HDMI output features a robust, polymorphic 4K60 4:4:4 scaler that can accommodate the most challenging resolution and frame rate conversions.

Specifications

Video I/O
HDMI 2.0 inputs	Three HDMI inputs capable of receiving source input video formats up to 4K60 4:4:4
HDMI 2.0 outputs	Two HDMI outputs capable of scaling and outputting video formats up to 4K60 4:4:4
Scaler	Each HDMI output features a robust, polymorphic 4K60 4:4:4 scaler than can accommodate the most challenging resolution and frame rate conversions.
Audio I/O
HDMI inputs	8-channel PCM audio, Q-SYS routable
HDMI outputs	8-channel PCM audio, Q-SYS routable
Analog audio input Signal-to-noise: THD+N: Input frequency response: Input Impedance (unbalanced):	3.5 mm unbalanced stereo mic/line input Q-SYS routable 80 dB 0.009% @ 0 dB 20 Hz to 20 kHz +0.05% / -0.5% 5 kΩ nominal Analog to digital converters: 24 bit, 48 kHz
Analog audio output Signal-to-noise: Output frequency response:	3.5 mm unbalanced stereo line output Q-SYS routable 90 dB THD+N: 0.0167% @ 0 dB 20 Hz to 20 kHz +0.2% / -0.5%
Other Connectors
External power supply	48 VDC Nominal, 1.5 A on 2-pin Euro connector
GPIO	Euro connector for extension of Q-SYS Control to third-party devices, user configurable
LAN A	Gigabit LAN connection for interface with Q-LAN; PoE++
PoE++ (Power over Ethernet) specification/wattage	Conforms to IEEE 802.3bt Type 4 specification, PD class 8 (71W at PD, 90W at PSE)
LAN B	No functionality at initial release
RS-232	Three-pin Euro connector for extension of Q-SYS Control to third-party devices, user configurable
General
Dimensions	8.66 in x 11.28 in x 1.72 in 220 mm x 286.6 mm x 43.6 mm
Weight	4.0 lb (1.81 kg)
Mounting options	Rack- (1 RU half-rack width), surface-, table-, or wall-mountable. All mounting hardware is included with the exception of surface-specific screws and washers.
Regulatory compliance	CE, FCC Part 15 Class B, RoHS
Environmental
Ambient operating temperature range	0-50° C
Humidity	5 to 85% non-condensing
Storage temperature	-20 to 70° C

Specifications are subject to change without notice.
