Core Nano
The Q-SYS Core Nano audio, video and control (AV&C) processor extends the applications of the Q-SYS Ecosystem into a wider range of smaller-scale installations across corporate, higher education, healthcare and beyond. Built on the same foundational technology as the rest of the Q-SYS processor portfolio, including the best-in-class Q-SYS Core 110f, Core Nano is designed for applications with lower network channel capacity and/or targeted processing requirements.
Note: For installation and connection instructions, drawings, and other documentation, refer to the Resources section on the Core Nano product page on the QSC website.
Note: Q-SYS Scaling Licenses expand the capabilities of the Core Nano. Refer to the Licensing topic for more information.
Feature | Core Nano |
---|---|
Total Network I/O |
64 x 64 |
Onboard I/O |
N/A |
Software-based Dante Capacity |
8 x 8 included (up to 32 x 32) |
USB Audio Channel Count |
8 x 8 |
AEC Processors |
8 |
VoIP Instances |
2 |
Onboard AV Bridging (USB) |
Yes |
Onboard GPIO |
N/A |
Onboard RS232 Control Ports |
2 |
Q-SYS Peripheral Limit1 |
32 |
Size |
1/2 rack, 1RU |
1. Includes native Q-SYS cameras, I/O (including NL), NV, TSCs, paging stations, Extensions and plugins with their “Is Managed” property set to “Yes”. It does not include Streaming I/O, Loudspeakers, Scripts or plugins with their “Is Managed” property set to “No”.
The following Q-SYS Designer components are available for the Core Nano, depending on its Properties.
Standard Components
- Status (Core)
- Serial Port (Core, I/O Frame, I/O-22)
- Loudspeaker Monitor
- HID Keyboard
- HID Media
- HID Conferencing
- USB Input
- USB Output
External USB Audio
USB Video Bridge
USB Audio Bridge

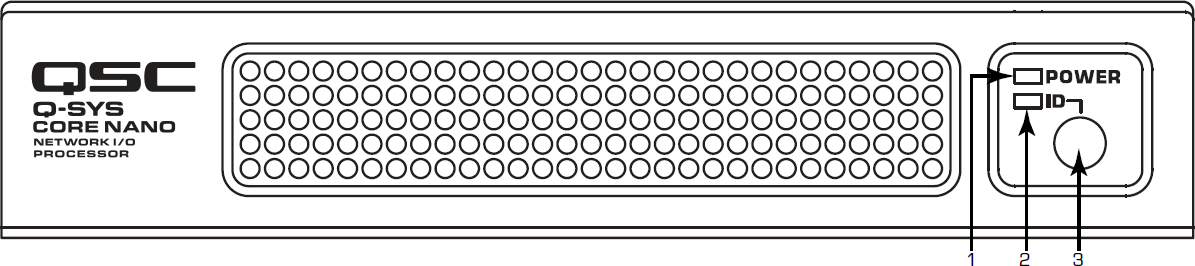

Front Panel
- Power LED – Illuminates blue when the Q-SYS Core Nano is powered on.
- ID LED – Blinks when placed into ID Mode via ID Button or Q-SYS Configurator.
- ID Button – Locates the Q-SYS Core Nano in Q-SYS Designer and Configurator. Pressing the button for 10 seconds resets the Core to its default network settings and host name and also clears the currently running design.

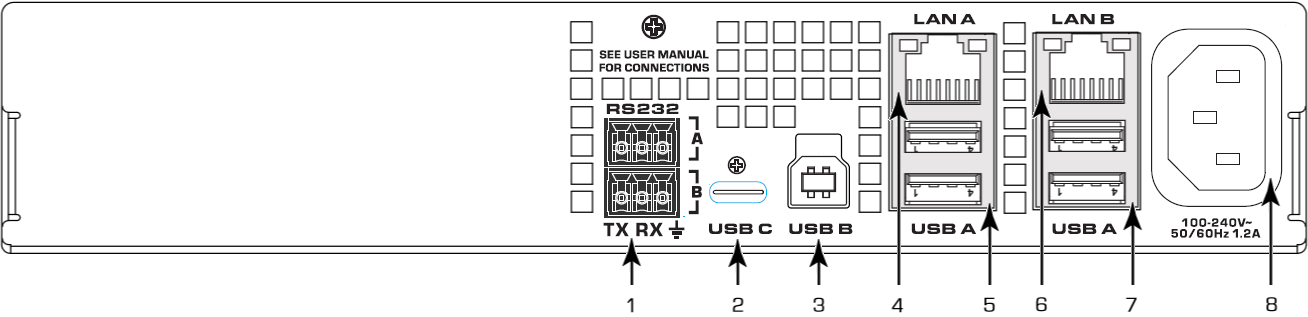

Rear Panel
- RS232 – COM x2. 3-position, 3.5mm connector
- USB Type C – USB 3.1, Host port, DisplayPort, Device port (when USB Type B not in use)
- USB Type B – USB 3.0, dedicated Device port
- LAN A – RJ45, 1000 Mbps, primary, Q-LAN, AES67, Dante, VoIP, WAN streaming, control
- USB Type A – USB 3.0 x2, Host ports
- LAN B – RJ45, 1000 Mbps, backup, Q-LAN, AES67, Dante, VoIP, WAN streaming, control
- USB Type A – USB 3.0 x2, Host ports
- AC mains – IEC 60320, C14 receptacle, universal power in (100V – 240V, 50/60 Hz)
Refer to the Specifications Sheet on the Core Nano product page at qsys.com.
