This topic provides information about the Q-SYS Core 1100 and Core 3100.
Note: This product is discontinued. Reference the Core 5200 replacement model. For Core 1100 and Core 3100 installation instructions, see the Hardware User Manual online.
Type 2 hardware provides new cables and connectors between the I/O cards and main boards in Cores and I/O Frames. Due to this change, the Type 2 hardware is not physically compatible with the older hardware. You can still integrate the new I/O Frames and Cores in the same system with older hardware, but the I/O cards are not interchangeable. Type 2 hardware can be identified by a yellow label on the back of the Core and I/O Frame, and the bottom of the I/O cards.
The available storage capability for audio files and design files depends on the Multi-Track Player option purchased with the Core. The MTP upgrade options use an upgraded media drive. (Available hard drive size varies.)
CAUTION: If you upgrade your hard drive, you will lose any files you had on the flash drive. Back up the files prior to upgrading.
Model |
Local Audio Channels |
NAC |
NAS |
AEC |
Core to Core Streaming |
Maximum Channels Out 1 |
---|---|---|---|---|---|---|
Core 1100 |
64 x 64 |
256 x 256 |
256 x 256 |
72 |
256 x 256 |
2048 |
Core 3100 |
64 x 64 |
512 x 512 |
256 x 256 |
144 |
512 x 512 |
2048 |
1. Using maximum fan-out, with 16-channel I/O Frames2. At least 128 NACs, and up to 512 NACs when sending an average of 8 or more channels per network audio stream (NAS) |
Note: For more information on NACs and NASs, refer to Networked Audio Design

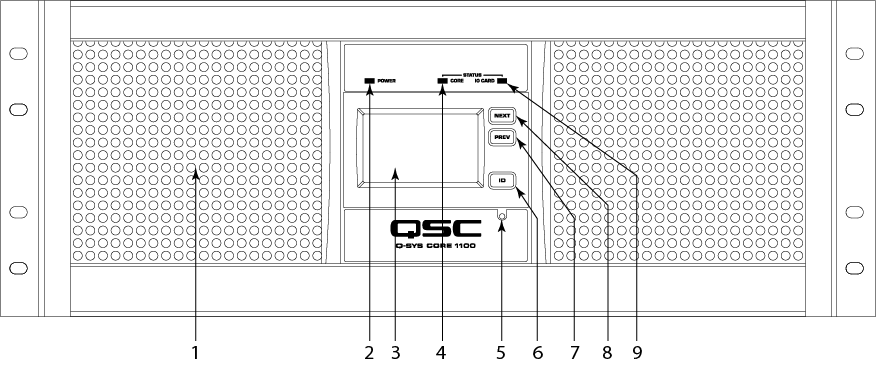

Front Panel Controls and Connections
|

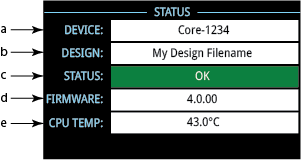

Status Screen

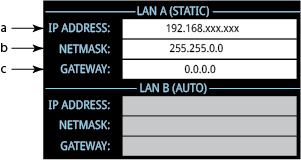

LAN A and B or AUX A and B

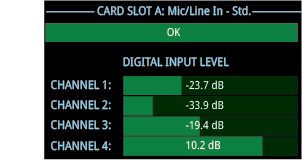

CARD SLOT A |
The Core 250i Type 2 allows eight of the following Type 2 I/O cards or a card/cover. Each I/O card supports four channels. The cards are not hot-swapable, and must be replaced by a qualified technician.
System Hardware |
Core 1100 / 3100 |
|||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Description |
System processor and control engine |
|||||||||||
Front Panel Controls |
LCD page Next momentary button LCD page Previous momentary button Unit ID momentary button Clear settings momentary switch (use a paperclip or similar tool to reset) |
|||||||||||
Front Panel Indicators |
Power On: Green LED Device Status: Tricolor LED I/O Card Status 480 x 240 Color Graphics LCD |
|||||||||||

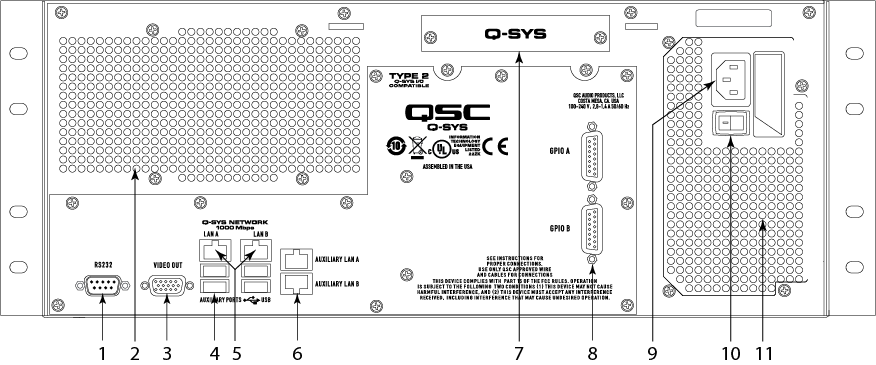

Rear Panel Connectors and controls |
RS-232: DE-9 (male 9-pin D shell connector) Video Out: DE-15 (female 15-pin high-density D shell connector) Auxiliary USB Ports x4 Q-SYS Network LAN A and LAN B: RJ45 1000 MBps only GPIO A and B: DA-15 (female 15-pin D shell connector) Auxiliary ports A and B RJ45 10/100/1000 MBps AC power connector Power switch |
|||||||||||
Capacity |
||||||||||||
|
|
|||||||||||
End Node Capacity |
|
|||||||||||
Processing (Channels of 32-bit audio) |
|
|||||||||||
I/O Capacity |
Up to 64 x 64 – Depends on I/O card purchased. |
|||||||||||
Line Voltage Requirements |
100 VAC - 240 VAC, 50 - 60 Hz |
|||||||||||
Dimensions (HWD) |
7" x 19" x 17.9" (177.8 mm x 482.6 mm x 454 mm) | |||||||||||
Accessories Included |
6 ft UL/CSA/IEC line cord Safety and Regulatory document, and Warranty Optional audio I/O ship kit |
|||||||||||
1. Using maximum fan-out with 16-channel unidirectional I/O Frames. |
For more information about discontinued Q-SYS products, including related documentation, see the Q-SYS / Legacy DSP page on the QSC website.
